BB4-PSG-E

Technology partner: V340 Pelco Sales
SKU BB4-PSG-E-340

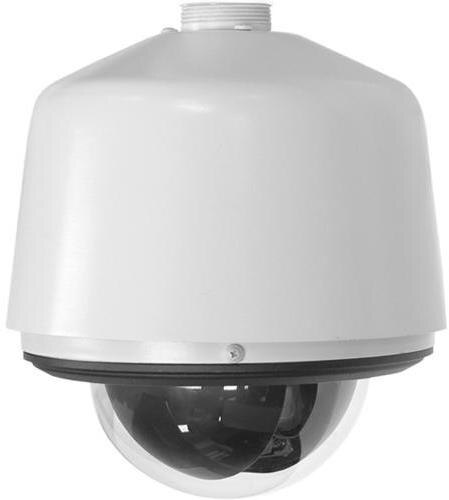

Integrated passive unshielded twisted pair circuit; 7 alarm inputs; 2 programmable auxiliary outputs; built-in surge and limited lightning protection; operating temperature 40 to 122F (40 to 50C); 27X and 35X Spectra IV SE dome drives compatible. The Pelco BB4-PSG-E is the back box portion of a Spectra PTZ dome camera system. All Pelco Spectra series camera systems are made up of three key components - a back box (body), dome drive (camera) and lower dome (bubble). Pelco specifically designed it this way so that you can easily swap, replace or upgrade a part of the assembly without having to purchase a whole new system.

Features:

  • 2 Autofocus, High Resolution Integrated Camera/Optics Packages; Multiple Back Box Models
  • Built-in Surge and Limited Lightning Protection
  • Camera Title Overlay, 20 User-Definable characters
  • Day/Night, 540 TVL, 128X Wide Dynamic Range (WDR), and Motion Detection (SD427 Series)
  • Day/Night, 540 TVL, 128X Wide Dynamic Range (WDR), Motion Detection, Image Enhancement and Electronic Image Stabilization (SD435 Series)
  • Freeze Frame During Presets
  • Horizontal and Zone Blanking
  • On-Screen Compass and Tilt Display
  • Password Protection
  • Window Blanking
