CCK-3104

Technology partner: V2485 Cypress Computer Systems Inc
SKU CCK-3104-2485

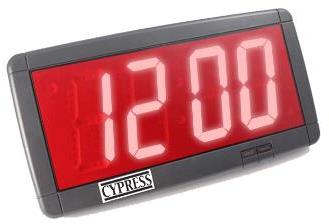

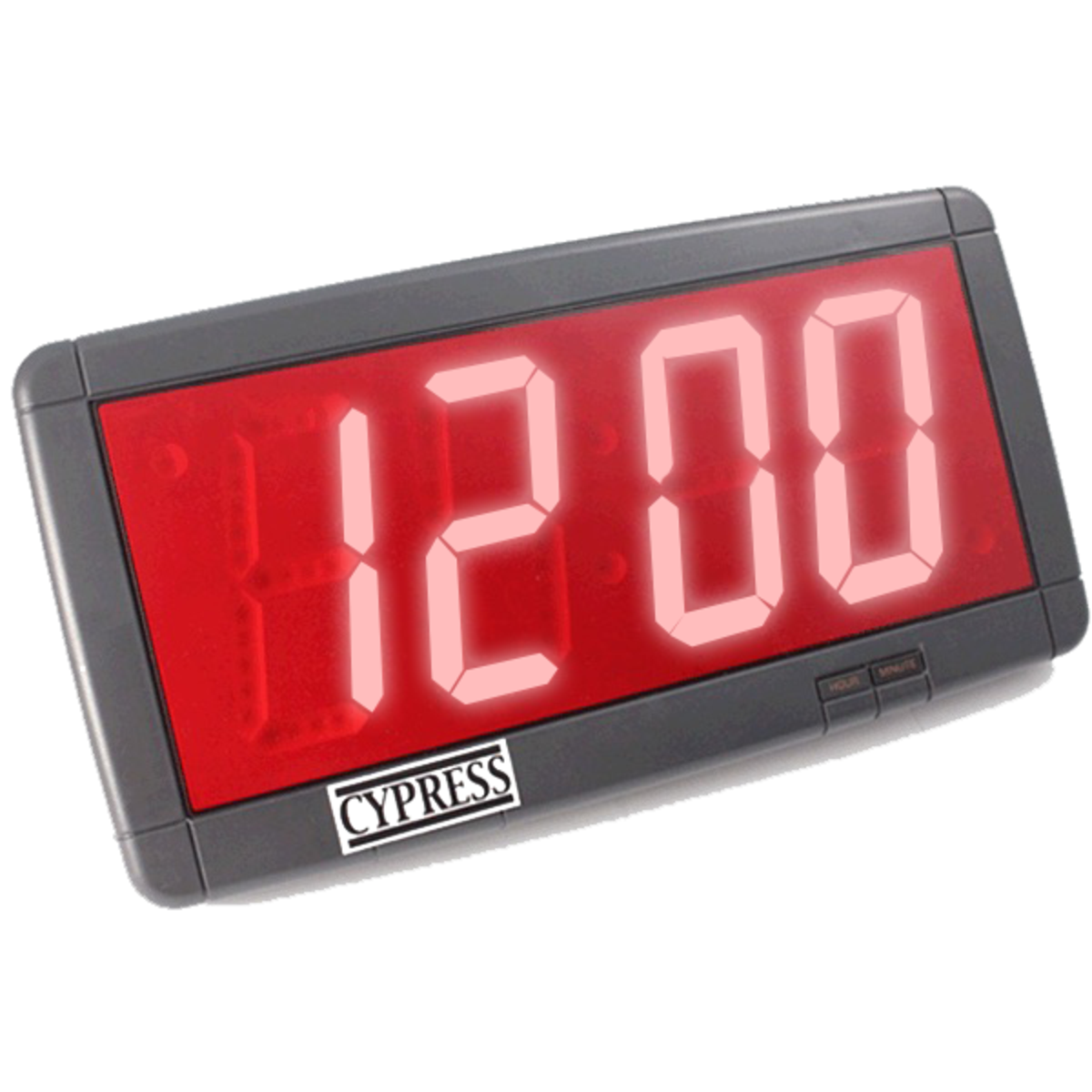

( requires CCX-1250 driver) overall dimension 13.5 x 7.5 x 2.25. The CCK-3104 Cypress synchronized display clocks are used to display the time from a master clock panel or access control system. Using an RS-485 twisted pair network, up to 32 clocks can be wired together in series and driven from a single time source. Clock drivers are available to provide compatibility with various access control panels, as well as an RS-232 driver for general computer applications. Dimensions 13.5 x 7.5 x 2.25.
*Requires CCX-1250 Driver* **3-Day Lead Time**

Features:

  • 4 HI Intensity LED
  • Readable Up to 100 Feet Away
  • Rugged moulded plastic housing
  • 12 Vdc Operation
  • RS-485 Communications
  • 12 or 24 Hour Display Format
  • Suitable for Indoor Use only
  • Optional RS-232 Driver Available
