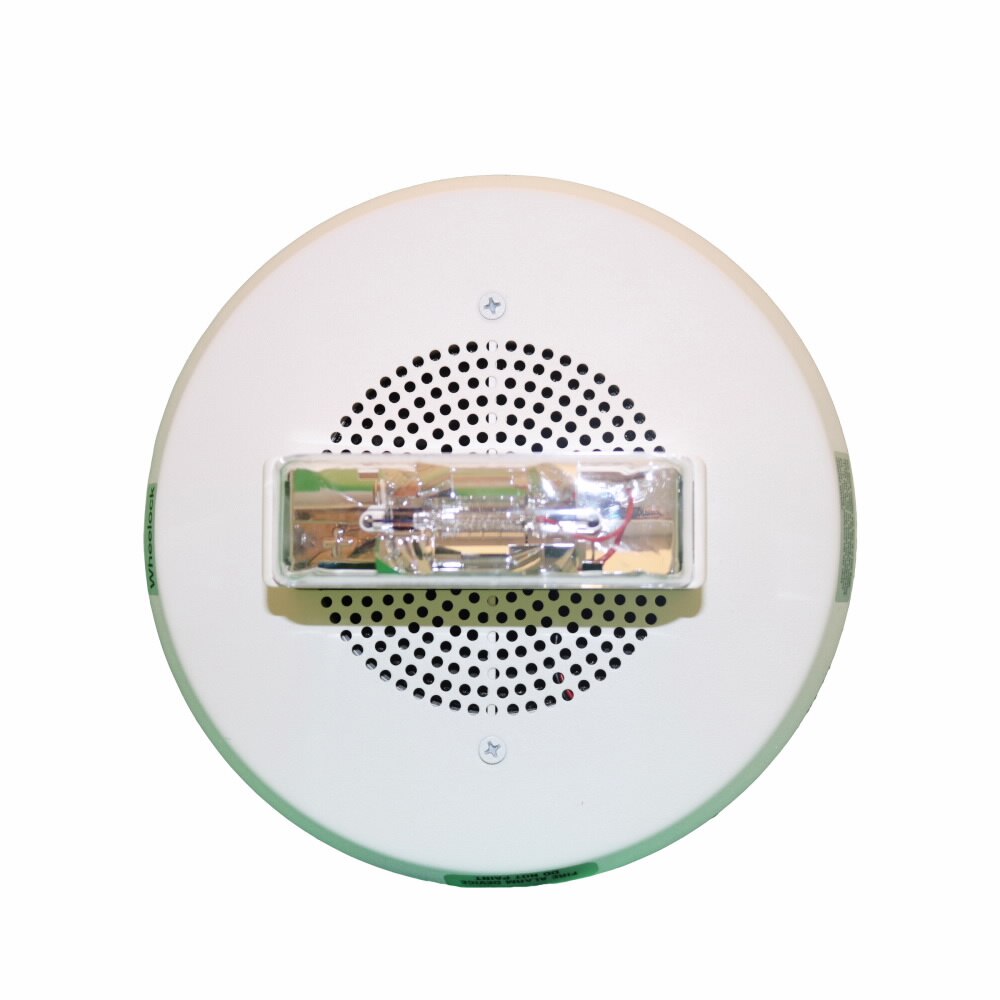

CH90-24MCC-FW

SKU CH90-24MCC-FW-3360
EOL 12.31.2023-See Replacement ELCHSWC / CHIME STR,RND,CEIL,24 VDC,15/30/75/95CD,WHT / Returnable Item with 25% Restock Fee
LIMITED STOCK

Features:

  • Approvals include: UL Standard 1971, UL Standard 464, New York City (MEA), and California State Fire Marshal (CSFM) and Chicago (BFP) See approvals by model in Specifications and Ordering Information
  • ADA/NFPA/UFC/ANSI compliant
  • Complies with OSHA 29 Part 1910.165
  • Wall mount models are available with Field
  • Selectable Candela Settings of 15/30/75/110cd or 135/185cd (Multi-Candela models) or 1575cd (single candela model)
  • Ceiling mount models are available with field selectable candela settings of 15/30/75/95cd or 115/177cd (Multi-candela models)
  • Low current draw with temperature compensation to reduce power consumption and wiring costs
  • Strobes produce 1 flash per second over the regulated voltage range
  • 24 VDC with wide UL ?Regulated Voltage? using filtered DC or unfiltered VRMS input voltage
  • Synchronize with Wheelock SM, DSM or the Wheelock PS-24-8MC Power Supply with built-in sync protocol
  • Adjustable Volume and Tone Control
  • Single Stroke or Vibrating Operation
  • Fast Installation with IN/OUT screw terminals using #12 to #18 AWG wires
