SKU CNFE1003S2-2611

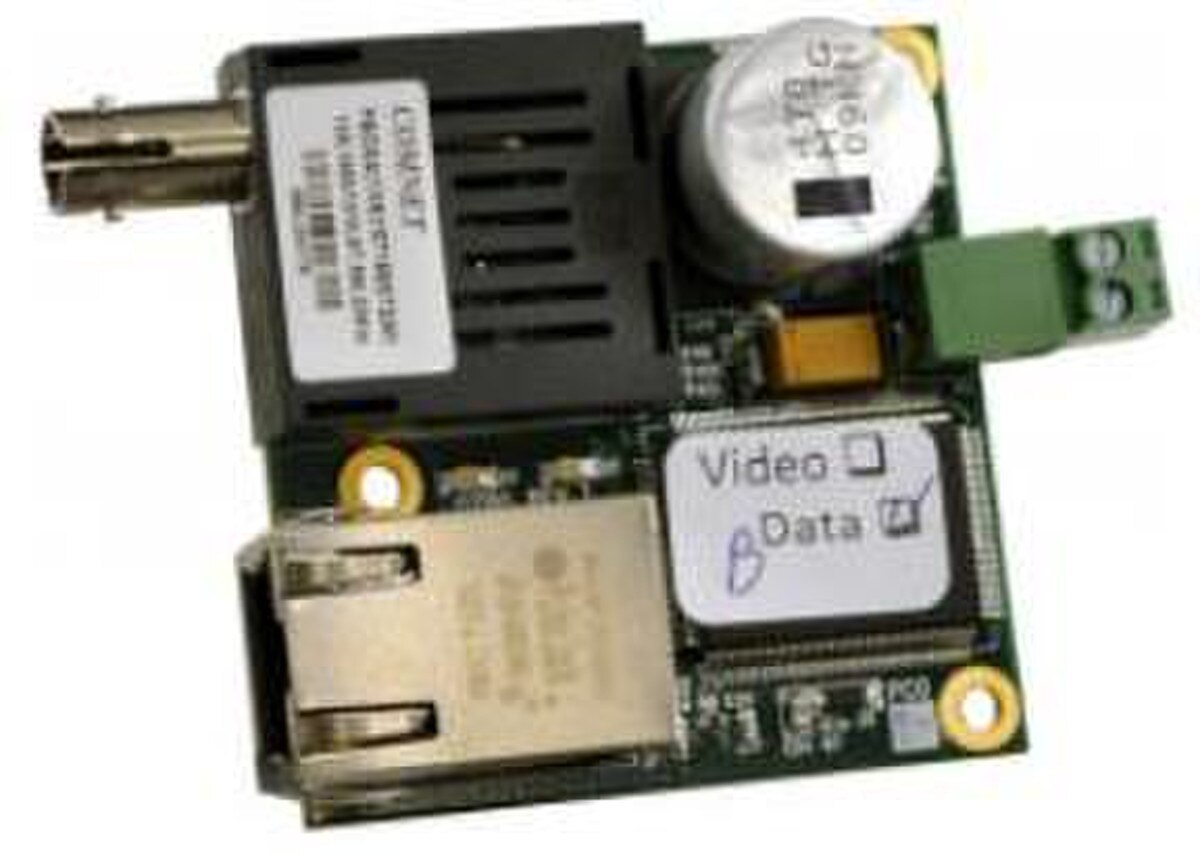

The ComNet Ethernet CNFE100X media converter series are one-channel Ethernet electrical to optical media converters. These auto-negotiating devices accept a 10/100 Mbps electrical input and convert this to a 100 Mbps optical output. This series of media converters use multimode and single-mode optical fiber and one and two fiber SC and ST optical connectors. LED indicators confirm operational status. All models are environmentally hardened with no electrical or optical adjustments (Plug and Play). Packaged in the exclusive ComNet ComFit housing, the standard size units may be either wall or rack mounted. Models within the series are also available in a small size. The units are powered by an included DC power supply.


Transparent to data encoding/compatible with major data protocols LED Indicators 10/100 Mbps Ethernet 10/100 BASE-T/TX electrical port 100 BASE-FX optical port IEEE 802.3 compliant Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data on electrical port(s). Optical port supports 100 Mbps full duplex data Distances up to: 3 km (2 mi) Multimode 20 km (12 mi) Single Mode ST or SC optical connectors 1 or 2 fiber design AC/DC powered Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required. Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events. ComFit standard form factor is interchangeable between stand-alone or rack mount use. Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput Standard ComFit models are hot-swappable.
