CNFE22MC

Technology partner: V2611 Comnet Communication Products
SKU CNFE22MC-2611

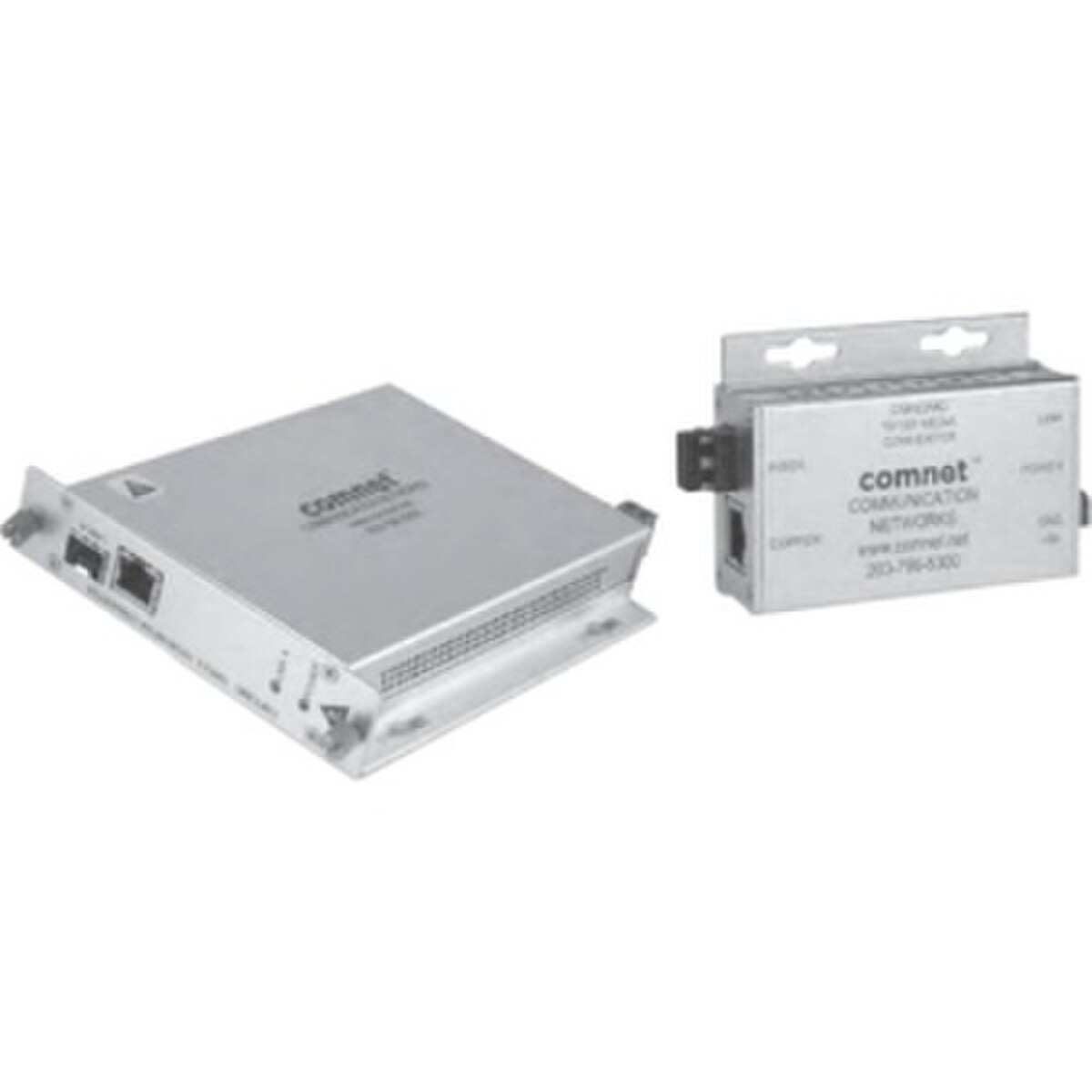

The ComNet Ethernet CNFE200X media converter series are two-channel Ethernet electrical to optical media converters with optional PoE+. These auto-negotiating devices accept two 10/100 Mbps electrical inputs and convert this to a single 100 Mbps optical output. This series of media converters are available as multimode or single-mode and one and two fiber SC and ST optical connectors. The ComNet exclusive Demux feature allows for port isolation, replicating two media converters over one fiber. The ComNet exclusive Mux feature prevents network video flooding of multicast traffic with DIP switch selection of the fiber port as a dedicated uplink path. The CNFE200(X) series can be powered by wide range AC or DC input
*REQUIRES SFP / Sold SEPARATELY* **2-4 Day Lead Time for Most Items / Other Items Up To 4-Week Lead Time-Contact PSA**

Features:

10/100 BASE-T/TX electrical port 10/100 Mbps Ethernet 100 BASE-FX optical port Automatic MDI/MDI-X crossover CNFE2MC and CNFE22MC are hot-swappable rack modules CNFE2MC and CNFE22MC are interchangeable between stand-alone or rack mount use – ComFit Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock,vibration, humidity with condensation, high-line/low-line voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Co Distances up to 80 km with optional SFPs Electrical port supports Auto-Negotiation for 10 Mbps or 100 Mbps, full duplex or half duplex data. LED Indicators Lifetime Warranty No in-field optical adjustments required Voltage transient protection on all power and signal input/output lines provides unconditional protection from power surges and other voltage transient events. Optical port supports 100 Mbps full duplex data Distances up to: 3 km (2 mi) Multimode 20 km (12 mi) Single Mode ST or SC optical connectors 1 or 2 fiber design IEEE 802.3 compliant 10/100 Mbps Ethernet 2 10/100 BASE-T/TX electrical ports 100 BASE-FX optical port Link Fault Pass-Through feature detects if either of the copper ports are down and triggers the optical port to switch states to indicate the failure to the head-end. Full size units feature a contact closure output for remote side link failure detection Plug-and-play design ensures ease of installation and no electrical or optical adjustments are ever required Voltage transient protection on all power and signal input/output lines provides protection from power surges and other voltage transient events. ComFit standard form factor is interchangeable between stand-alone or rack mount use. Electric Port Supports Auto-negotiation for Full Duplex or Half Duplex Data Throughput Standard ComFit models are hot-swappable
