CNGE2MC

SKU CNGE2MC-2611

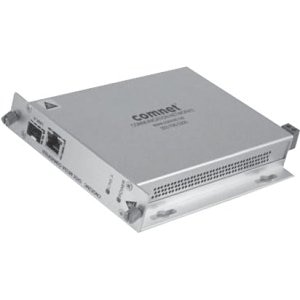

The ComNet CNGE2MC and CNGE22MC Ethernet 2 port media converter are designed to transmit and receive 10/100/1000 Mbps data over optical fiber through user selectable SFP options. The CNGE2MC transmits and receives a single channel of Ethernet data and the CNGE22MC transmits and receives two independent channels in one unit. These models require the ordering of sold-separately interchangeable SFP modules for fiber type, distance and connectors. Both models' electrical interfaces will Auto-Negotiate to a 10 Mbps, 100 Mbps or 1000 Mbps Ethernet rate without any adjustments. The optical interface operates at a 1000 Mbps Ethernet rate. Both the CNGE2MC and CNGE22MC are environmentally hardened to operate in extreme temperatures. LED indicators are provided for confirming equipment operating status. These units are interchangeable between stand-alone or card mount configurations.

Features:

10/100 BASE-T/TX electrical port 10/100/1000 Mbps Ethernet 100 BASE-FX optical port 1000 BASE-FX optical port Automatic MDI/MDI-X crossover CNGE2MC and CNGE22MC are hot-swappable rack modules CNGE2MC and CNGE22MC are interchangeable between stand-alone or rack mount use – ComFit Designed to meet full compliance with the environmental requirements (ambient operating temperature, mechanical shock, vibration, humidity with condensation, high-line/lowline voltage conditions and transient voltage protection) of NEMA TS-1/TS-2 and the Caltrans Specification for Traffic Signal Con Distances up to 120 km with optional SFPs Electrical port supports Auto-Negotiation for 10 Mbps,or 1000 Mbps, full duplex or half duplex data. IEEE 802.3 compliant LED Indicators Lifetime Warranty No in-field optical adjustments required Optical port supports 1000 Mbps full duplex data Uses interchangeable SFP for fiber type, distance and connector (Ordered separately) Voltage transient protection on all power and signal input/output lines provides unconditional protection from powersurges and other voltage transient events.
