DTK-DF120S1

Manufacturer: Ditek
SKU DTK-DF120S1-1569

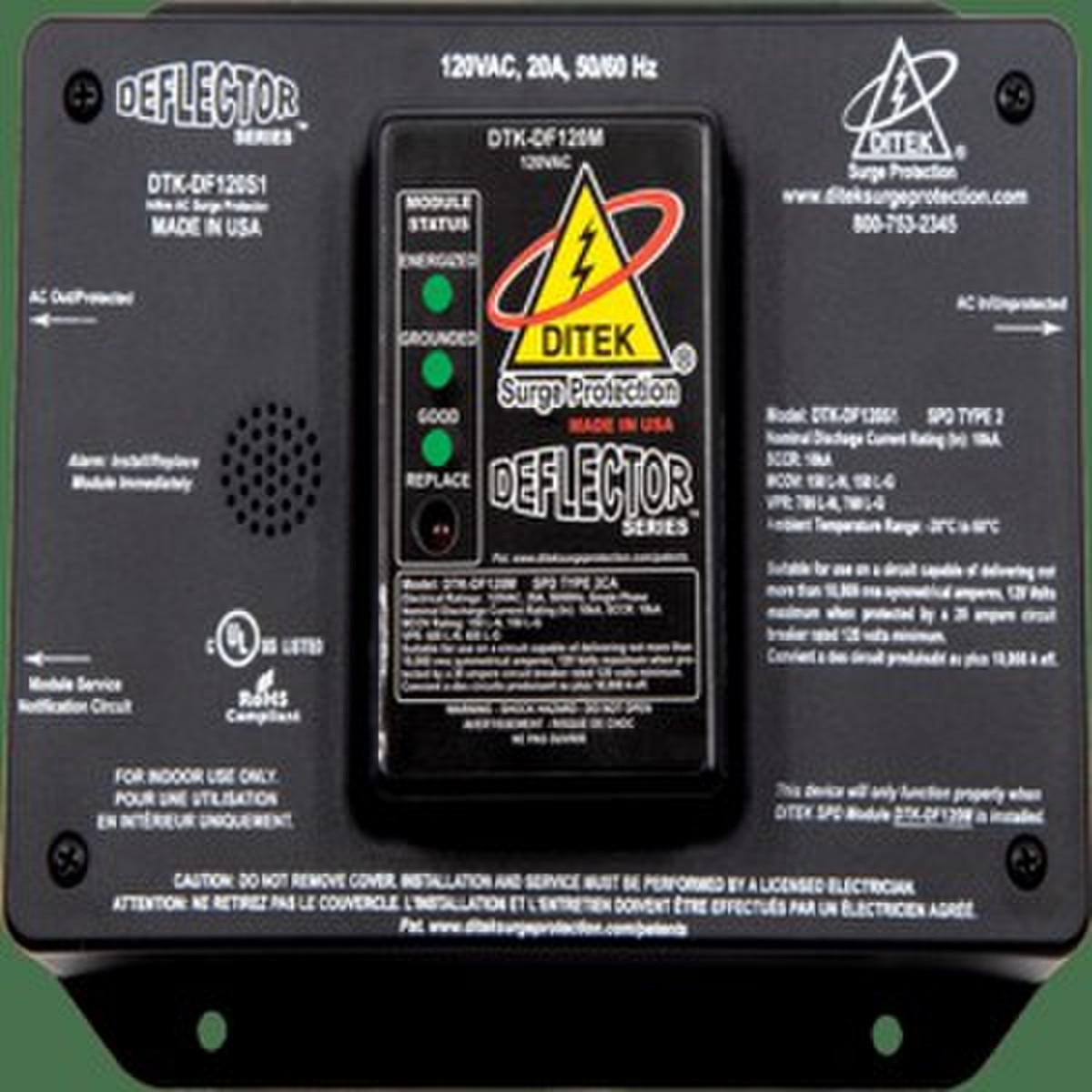

Deflector Series SPD, 120V 20A, Single Circuit, Series-connected, UL 1449, UL 1283 - Visual, audible, smart. DITEK's Deflector DTK-DF120S1 sets a new standard for 120VAC Power protection. Its patented design provides maximum critical load protection by minimizing AC supply voltage spikes and isolating incoming surges that originate from lightning or other sources.


Features:

  • Protects 120V AC Single Phase Critical Loads
  • Audible alarm sounds when protection is compromised or protection module is removed
  • Rapid-Replacement modules for ease of installation (DTK-DF120M)
  • Dry contacts for remote notification when service is required
  • UL1283 EMI/RFI noise filtering ensures clean power for connected equipment
  • Separate LED indicators for power, ground and protection status
  • Multi-stage hybrid circuit design for fast response and best protection
  • Accepts both flexible and rigid conduit
  • No additional enclosure require

Product Dimensions

Height: 2.6"
Width: 5.4"
Depth: 0"
Weight: 15.5lb

Specs & Manuals:

Spec SheetInstallation Instructions/ Assembly Instruction
