DTK-RM16EXTS

Manufacturer: Ditek
SKU DTK-RM16EXTS-1569

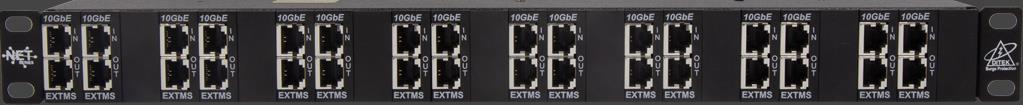

16 Channel Rackmount POE Extender Surge Protector, 1U, Shielded RJ45 In/Out, 10GbE - DITEK's DTK-RM16EXTS is a 16-channel, upgradeable, 1U rack mount surge protector designed specifically for PoE extender circuits. Using state-of-the art circuitry, provides best-in-breed surge protection for PoE extender circuits and optionally, Ethernet and PoE. The DTK-RM16EXTS supports data speeds up to 10GbE, and provides surge protection grounding to remote devices when used with STP cabling. The DTK-RM16EXTS is ideal for installations with multiple-port mid-span injectors and hybrid network scenarios.


Features:

  • Uses TVS diode and GDT technologies for superior protection
  • Robust 20kA per pair surge current capacity is the highest offered for shielded network devices
  • Rapid-replacement modular design allows for modules to be swapped from front of device without removing from rack
  • Complies with all IEEE Power over Ethernet standards
  • Additional modules can be added to support up to 24-channels
  • UL497B Listed

Specs & Manuals:

Spec SheetInstallation Instructions/ Assembly Instruction
