E90-24MCC-FR

Technology partner: V3360 Cooper Notification (Wheelock)
SKU E90-24MCC-FR-3360

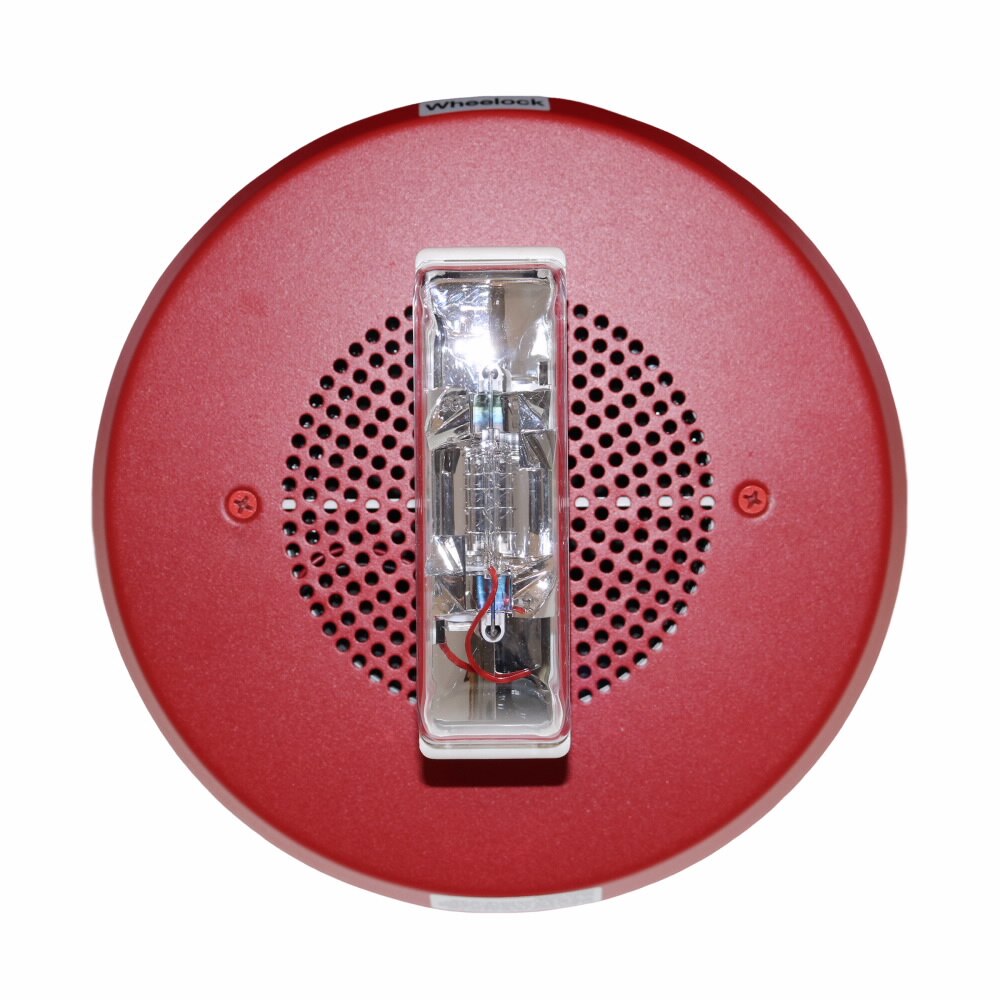

The Wheelock E90-24MCC-FR (RED)ceiling mount Speaker Strobes are designed for high efficiency sound output, with dual voltage (25/70 VRMS) capability and field selectable taps from 1/8 to 2 watts. The low profile design incorporates a speaker mounting plate for faster and easier installation. Each model has a built-in level adjustment feature and an aesthetic two (2) screw grille cover. The E90-24MCC-FR Speaker Strobes model incorporate the Low Current draw Series RSS Strobes. Ceiling mount models are available in Wheelock patented MCC multi-candela ceiling strobe with field selectable intensities of 15/30/75/95cd or 115/177cd.Speaker Strobes are designed for high efficiency sound output with field selectable input voltage (25/70 VRMS) and field selectable taps from 1/8 to 2 watts. The low profile design incorporates a speaker mounting plate for faster and easier installation. Each model has a built-in level adjustment feature and an aesthetic two (2) screw grille cover.
Standard Product-3 Days Lead Time

Features:

  • High fidelity sound output
  • Efficient design for high intelligibility at minimum wattage
  • Widest frequency range in the industry
  • Strobes produce 1 flash per second over the regulated voltage range
  • 24 VDC with wide UL Regulated Voltage
  • Synchronize using the Wheelock Sync Modules or panels with built-in Wheelock Patented Sync Protocol
  • Field selectable taps for 25 or 70 VRMS operation from 1/8 watt up to 2 watts
  • Fast installation with IN/OUT screw terminals using #12 to #18 AWG wires
