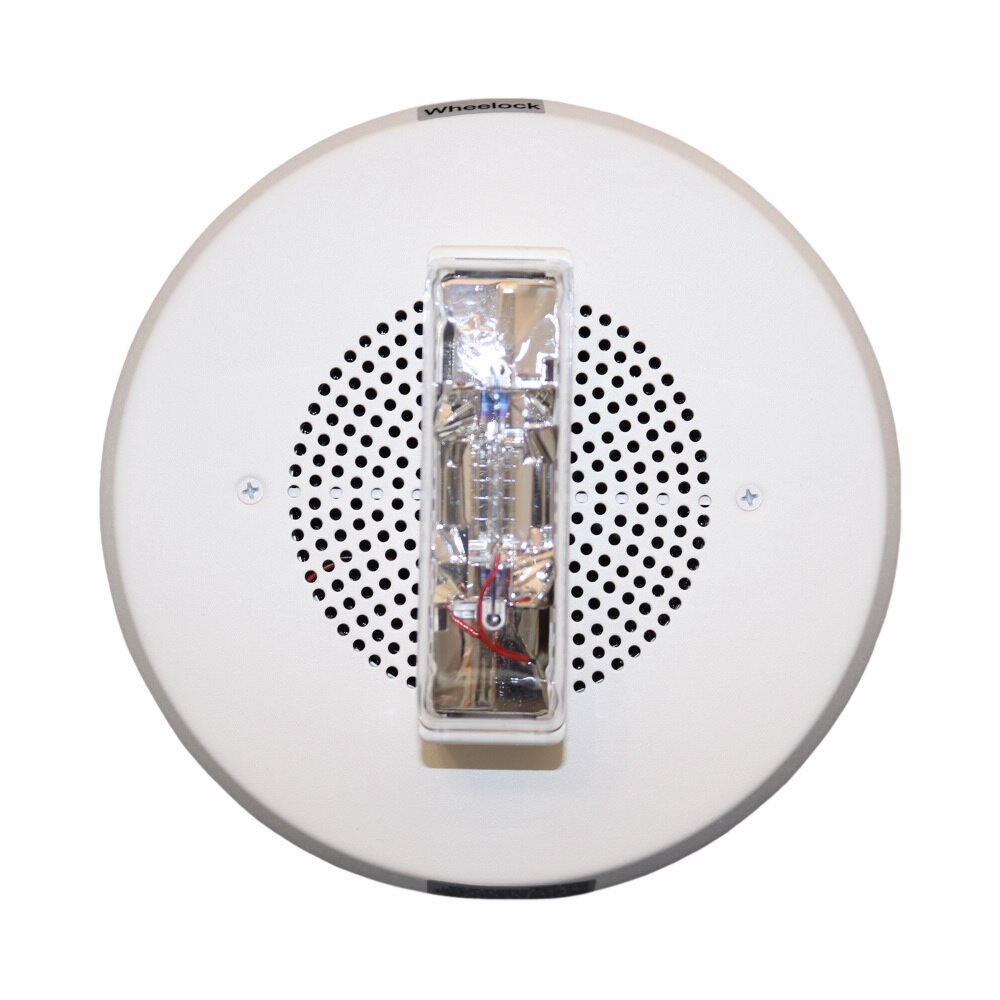

E90-24MCCH-FW

SKU E90-24MCCH-FW-3360
2W SPKR STR,RND,CEIL,H INT,24VDC,115/177CD,WHT

Features:

  • Approvals include: UL Standard 1971, UL Standard 1480, New York City (MEA), California State Fire Marshal (CSFM), Factory Mutual (FM) and Chicago (BFP) See approvals by model in Specifications and Ordering Information
  • ADA/NFPA/ANSI compliant
  • Complies with OSHA 29 Part 1910.165
  • Wall mount models are available with Field Selectable Candela Settings of 15/30/75/110cd or 135/185cd (Multi-Candela models), or 1575cd (Single Candela model)
  • Ceiling mount models are available with field selectable candela settings of 15/30/75/95cd or 115/177cd (Multi-candela models)
  • Strobes produce 1 flash per second over the regulated voltage range
  • 24 VDC with wide UL Regulated Voltage using filtered DC or unfiltered VRMS input voltage
  • Synchronize with Wheelock SM, DSM or Wheelock PS-24-8MC Power Supply with built-in sync protocol
  • Field selectable taps for 25 or 70 VRMS operation from 1/8 watt up to 2 watts
  • High efficiency design for maximum output at minimum wattage across a frequency range of 400 to 4000 HZ
  • Fast installation with IN/OUT screw terminals using #12 to #18 AWG wires SERIES E70 STROBE SERIES E90 SPEAKER Series E70 Speakers and Speaker StrobesTHE CITY
