ES611

SKU ES611-2586

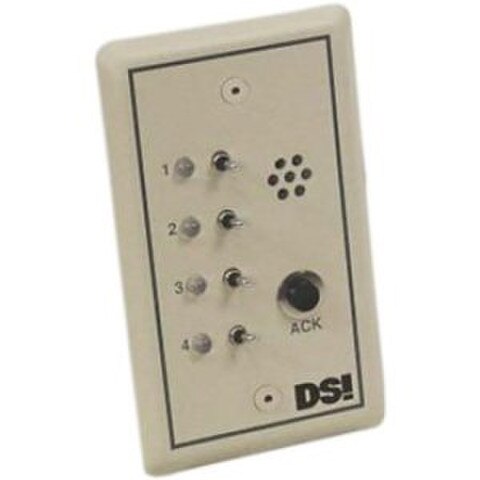

The ES600 series annunciators provide an efficient means of displaying the state of security devices throughout a monitored facility. They serve to provide visual and audible indication of alarms as they occur, giving security personnel the ability to monitor a large complex from a single location. The ES600 series uses a modular concept to provide alarm monitoring in a compact and economical package. Standard and optional control electronics are organized into four zone modules, which can be grouped to provide a wide range of monitoring capabilities.

Features:

  • Easy installation
  • Solid state design
  • Available in 4, 8 and 12 zone configuration
  • Monitors normally closed dry contacts
  • 12 volt DC operation
  • Global alarm output (N/O relay)
  • Optional individual zone shunt
  • Optional individual zone relay output
  • Optional end of line supervision
  • Painted off-white aluminum (custom silk screening is available - please contact factory)
  • Fits in gangable box
