SKU MX-1-5050

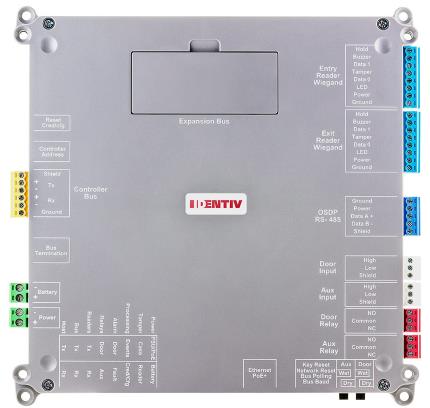

Controls 1 Fully Supervised Door. 4000 Users, 1 door relay, 1 auxiliary relay (both relays support optional wet power setting), 2 Alarm Inputs (requires Line Modules), plastic enclosure, requires PoE+ power supply, tamper switch, integrated SNIB3 and RREB (one port, 2 readers). 2 Built in software configurable Wiegand interfaces for direct reader connection. Provides 10/100/1000 encrypted Ethernet to Host PC and downstream controllers, SNIB2 or SNIB3 (Mx and DIGI*TRAC). Requires ICPAM 3.1 Velocity 3.6 SP2.1 or later for full functionality. *Also listed uner PoE section. Options: Line Modules
Also listed uner PoE section. / $35 Surcharge Per Reader For All Access Control Readers / Must Be Certified To Purchase Hirsch Products


  • Controls one fully supervised door with entry and optional exit keypads/readers
  • Scalable from single controller to networked multi-site installations
  • Multi-microprocessor architecture with dedicated crypto-processor
  • Integrated network communication with onboard 10/100/1000 Ethernet IP port
  • Auxiliary/alarm relay output
  • Integrated hardware encryption with enabled devices
  • High security supervised alarm inputs
  • Configurable relay outputs (door or general purpose)
  • Open Secure Device Protocol (OSDP)
  • ScramblePads, TS Readers, and third-party OSDP readers (i.e., Veridt Stealth Series)
  • Reader LED and buzzer control
  • Extended cable runs
  • Entry/exit reader setup
  • Wiegand setup via Velocity
  • Multi-drop global I/O using RS-485
  • Firmware can be updated through Velocity
  • Powered at the edge by PoE+
  • Special circuitry to protect reader/relay terminals from excessive current draws
  • Supports a wide variety of readers and credentials
  • Built-in protection from door strikes and mag locks that generate large inrush current demand during power-up and large
  • induced current demand during power-down
