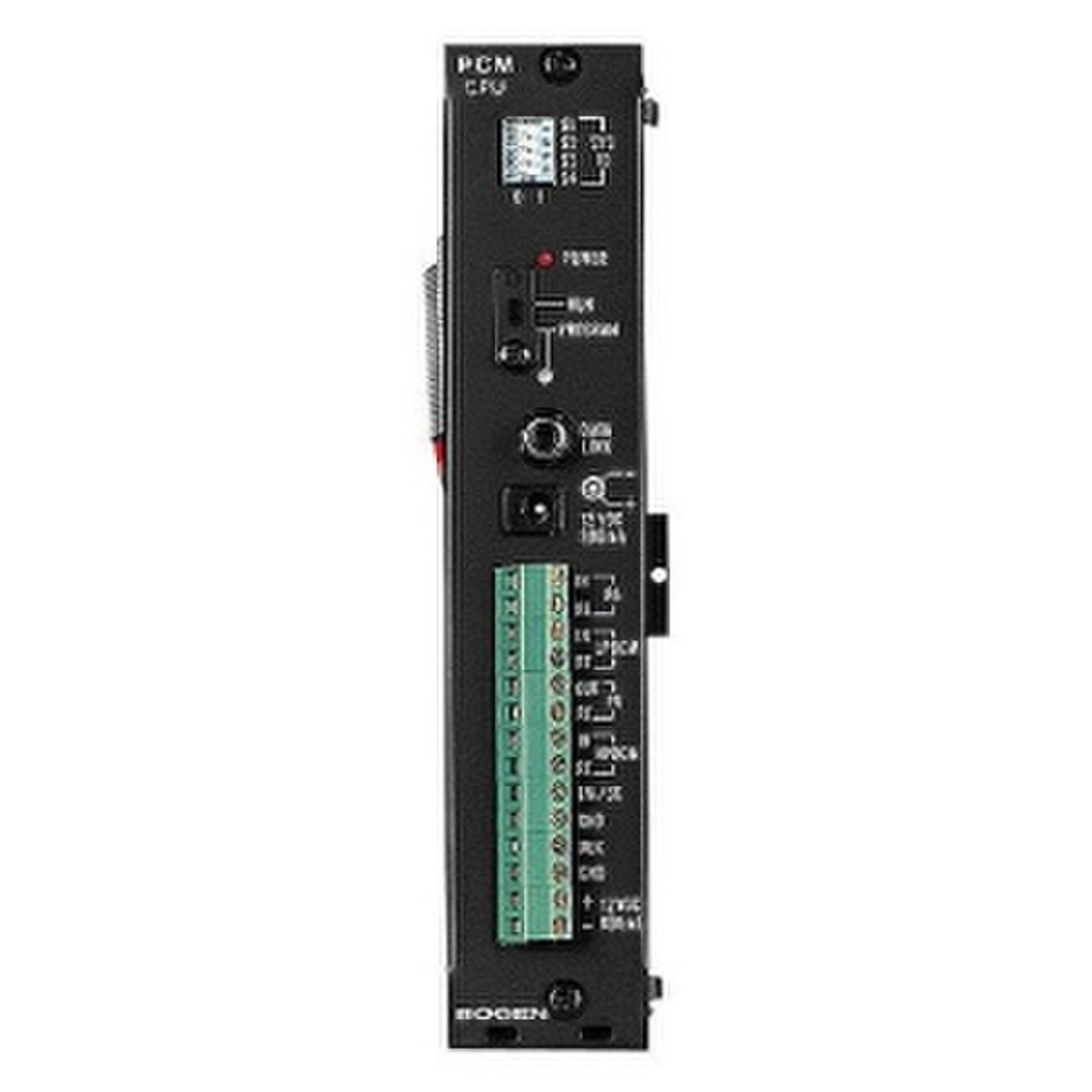

PCMCPU

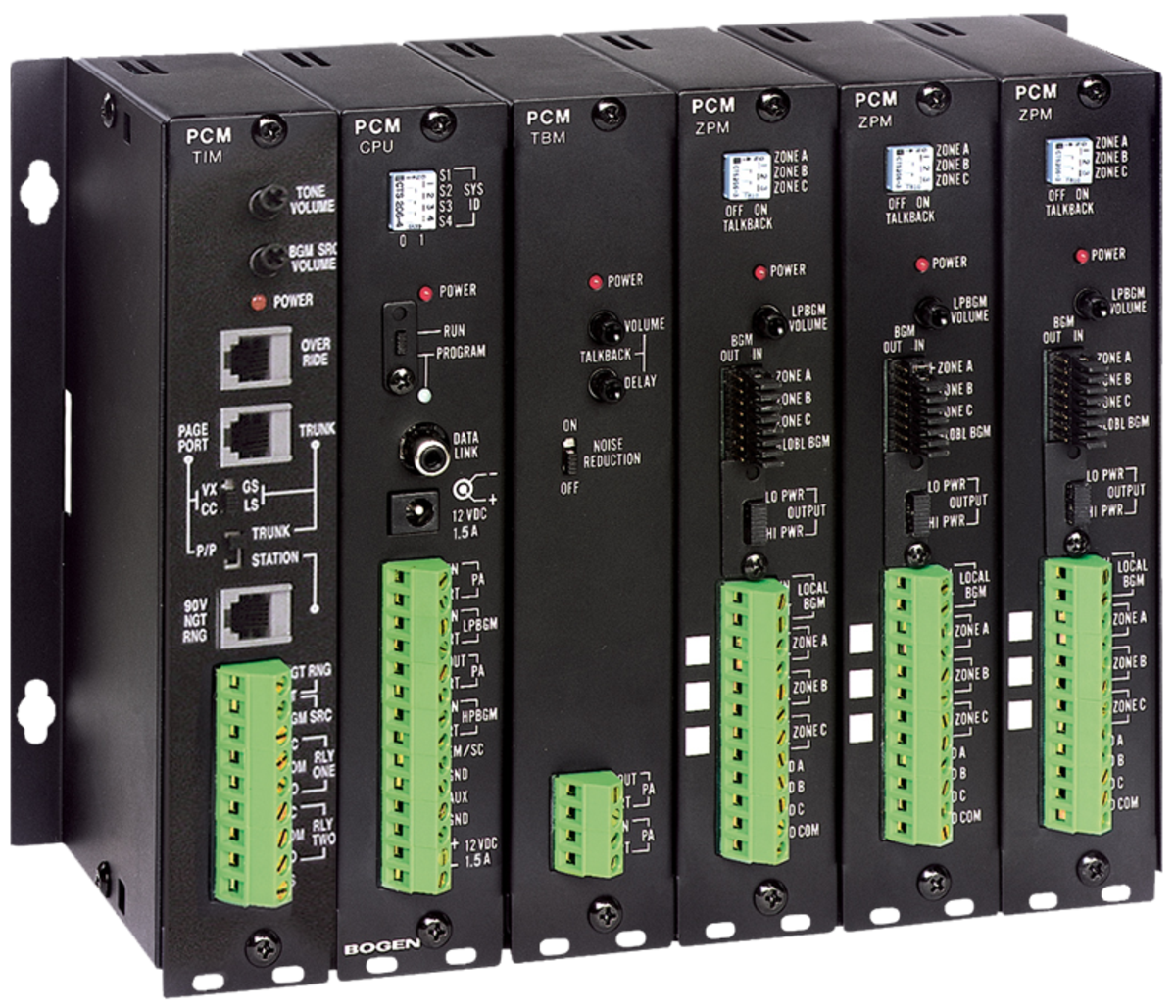

The Bogen PCM2000 is a modular telephone zone paging and control system. By integrating unique, multi-function modules, the PCM2000 offers both incredible flexibility and capability for future expansion. The Bogen PCM2000 Zone Paging System is designed for direct connection to loop start and ground start trunks, to PBX or KEY paging ports which supply DTMF capability, and to analog T/R lines. Operation requires a 12V (1.5A) DC power supply. The system allows total system amplifier power of up to 250W. The unit includes flanges with keyhole slots for wall mounted installation. The system is registered under Part 68 of FCC rules.
