SBA225

Manufacturer: Bogen Communications
SKU SBA225-261

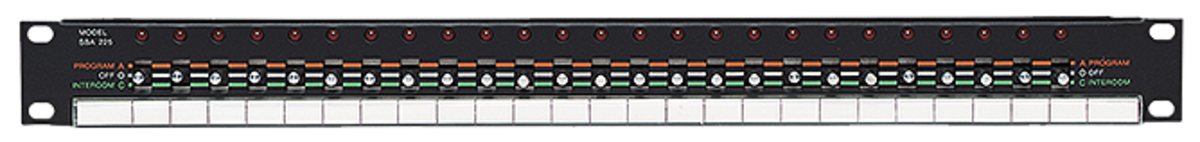

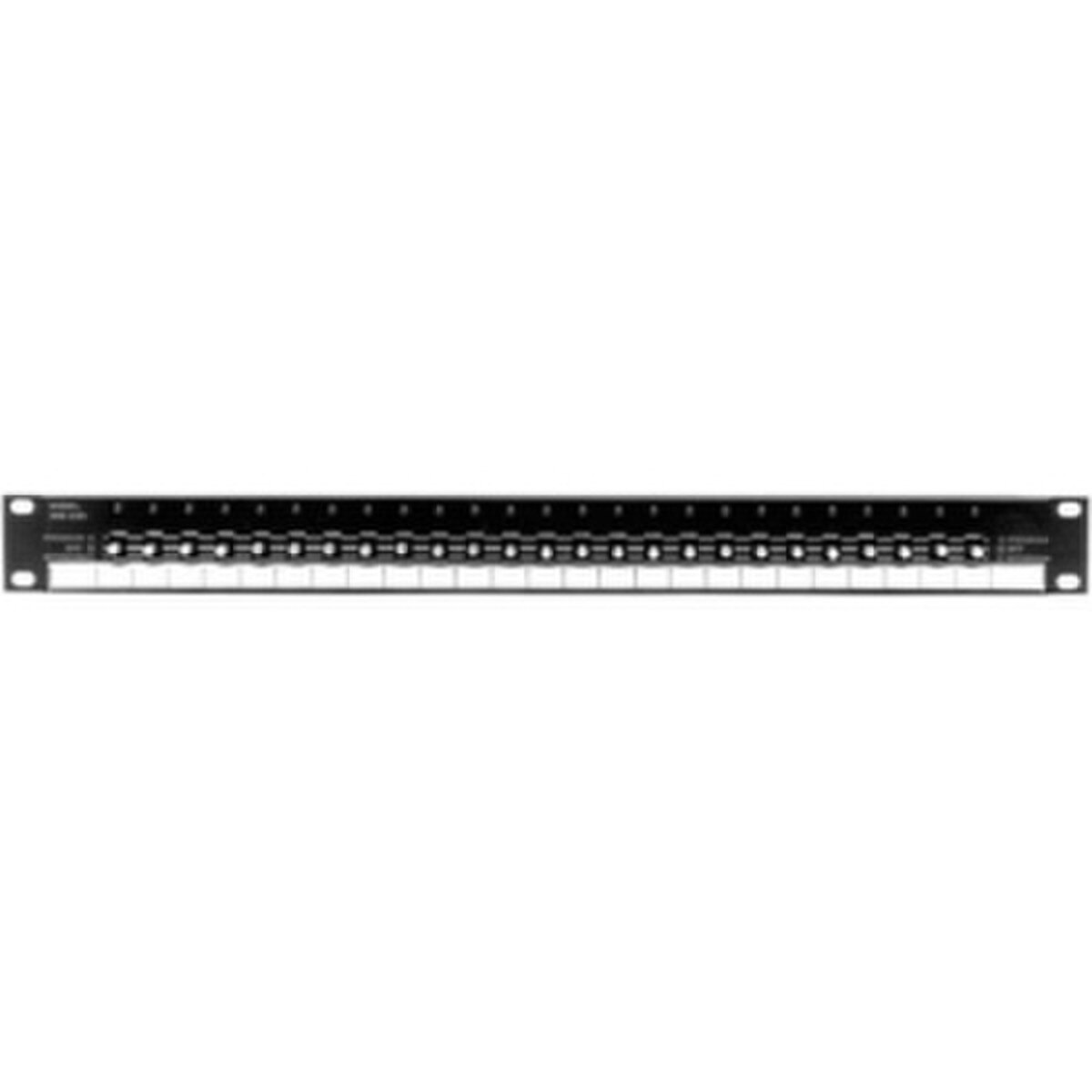

The Bogen Model SBA225 Room Selector Panel is designed for use with Bogen MultiGraphic® and Multicom 2000® Systems.The SBA225 is also used in Bogen’s PI35A and SI35A Power Intercom systems. This panel provides call annunciation (using LEDs) and tone signal in addition to room selection. The panel uses three-position, four-pole lever-action switches with positive detents. In the SBA225, these switches are used to selectively connect up to 25 speaker-equipped locations to either a PROGRAM, OFF, or INTERCOM channel.


Features:

  • Color-coded guidelines Built-in LED annunciators Space-saving design Modular versatility

  • Product Dimensions

    Height: 1.75"
    Width: 19"
    Depth: 2"
    Weight: 4lb

    Specs & Manuals:

    Spec Sheet/BrochureManual
