SPS2406

Manufacturer: Bogen Communications
SKU SPS2406-261

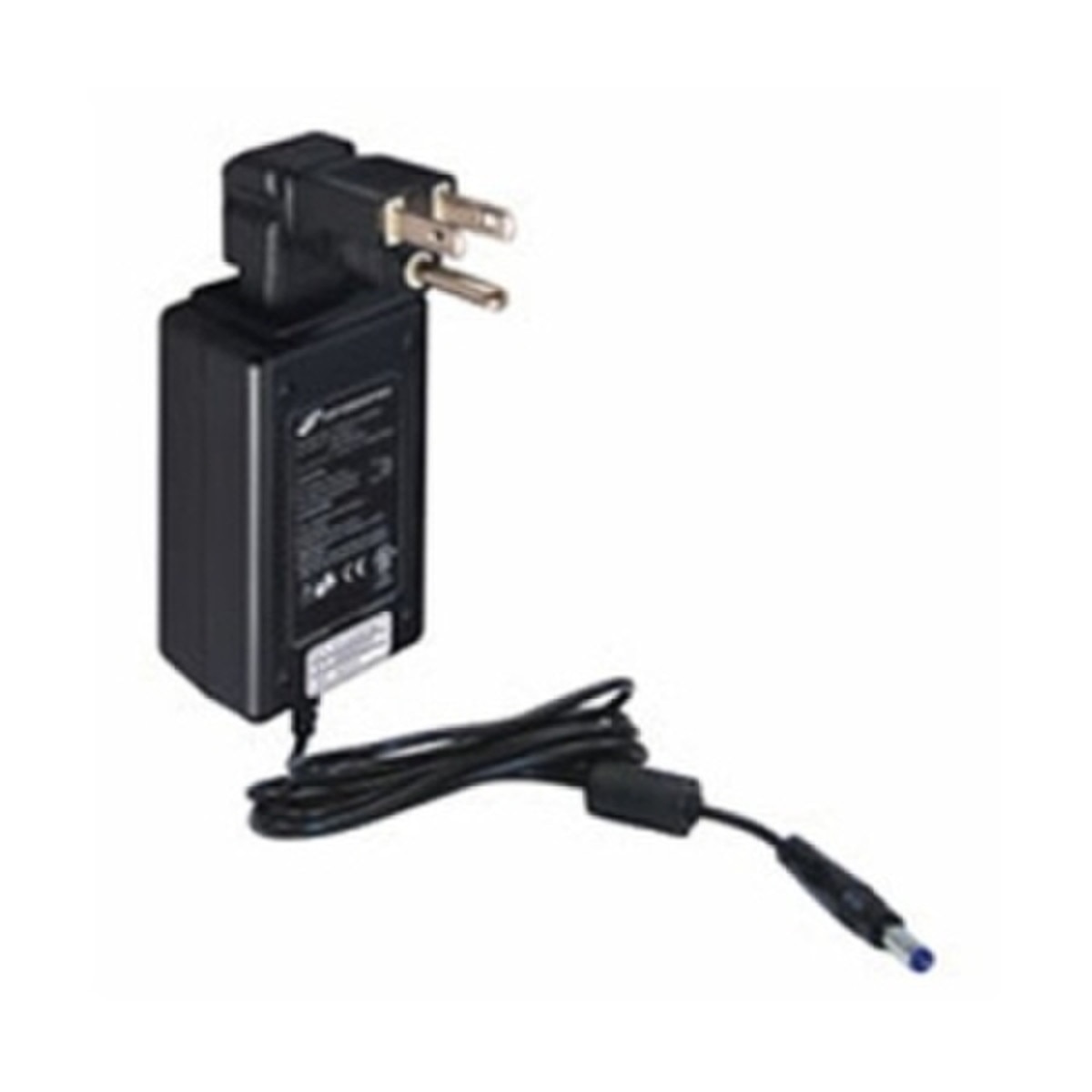

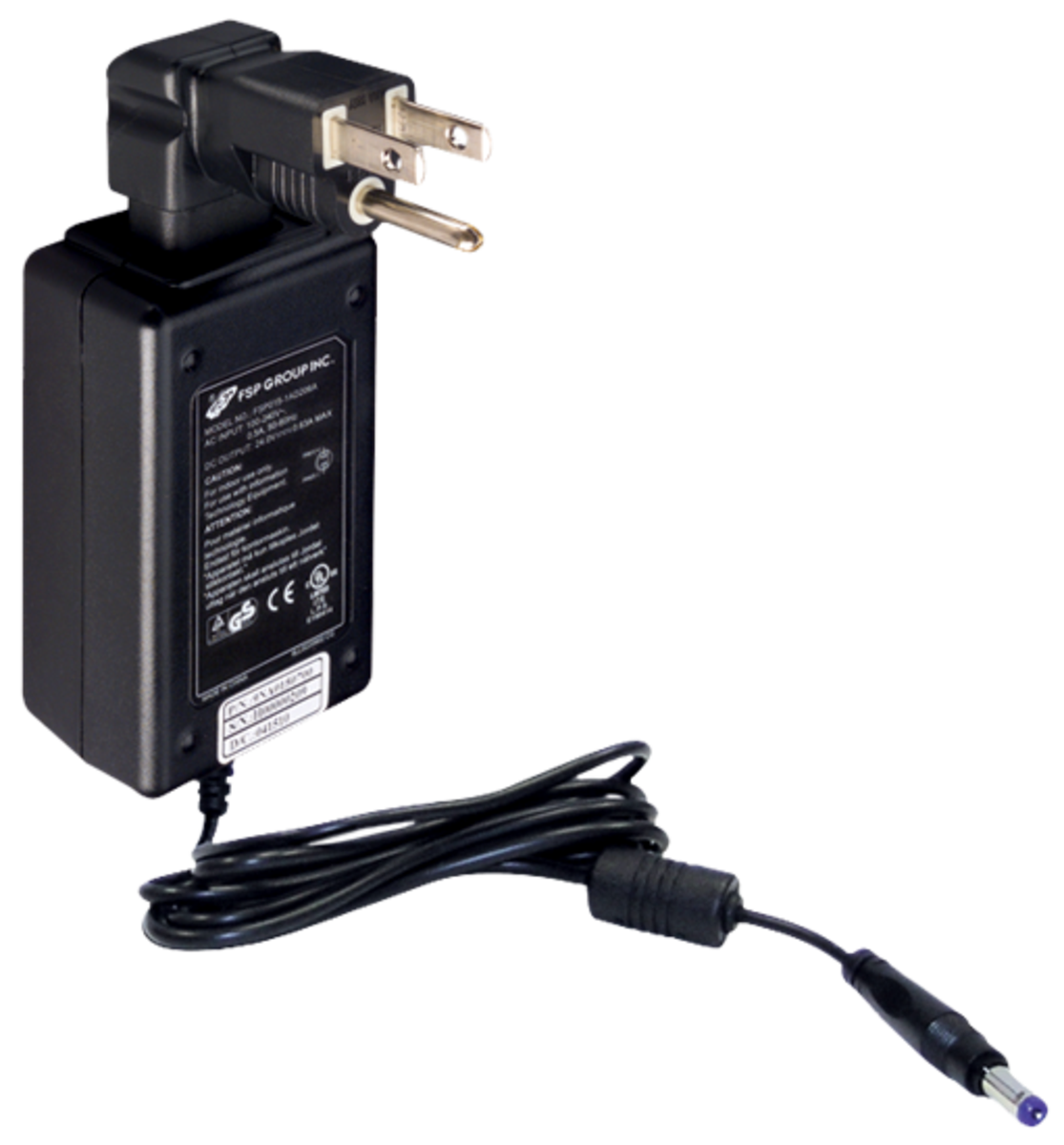

The Bogen Model SPS2406 power supply provides regulated 24V DC at 600 mA (12 CU) from a 120V AC, 60 Hz source. The SPS2406 employs switching technology that results in large current capacities while generating minimal heat. The SPS2406 can be connected to both barrel-type connectors or screw terminal connections, and is receptacle-mounted. The unit's dimensions are 2" W x 3-3/8" H x 1-1/4" D and it weighs 2 lb. The power supply is both UL and C-UL listed.


Features:

  • Switching Technology provides large current capacity in compact package
  • 24V DC @ 600mA regulated
  • Easy flange mount
  • Generates little heat
  • UL Listed

Product Dimensions

Height: 3.12"
Width: 2"
Depth: 1.25"
Weight: 2lb

Specs & Manuals:

Spec Sheet/BrochureManual
