T72510

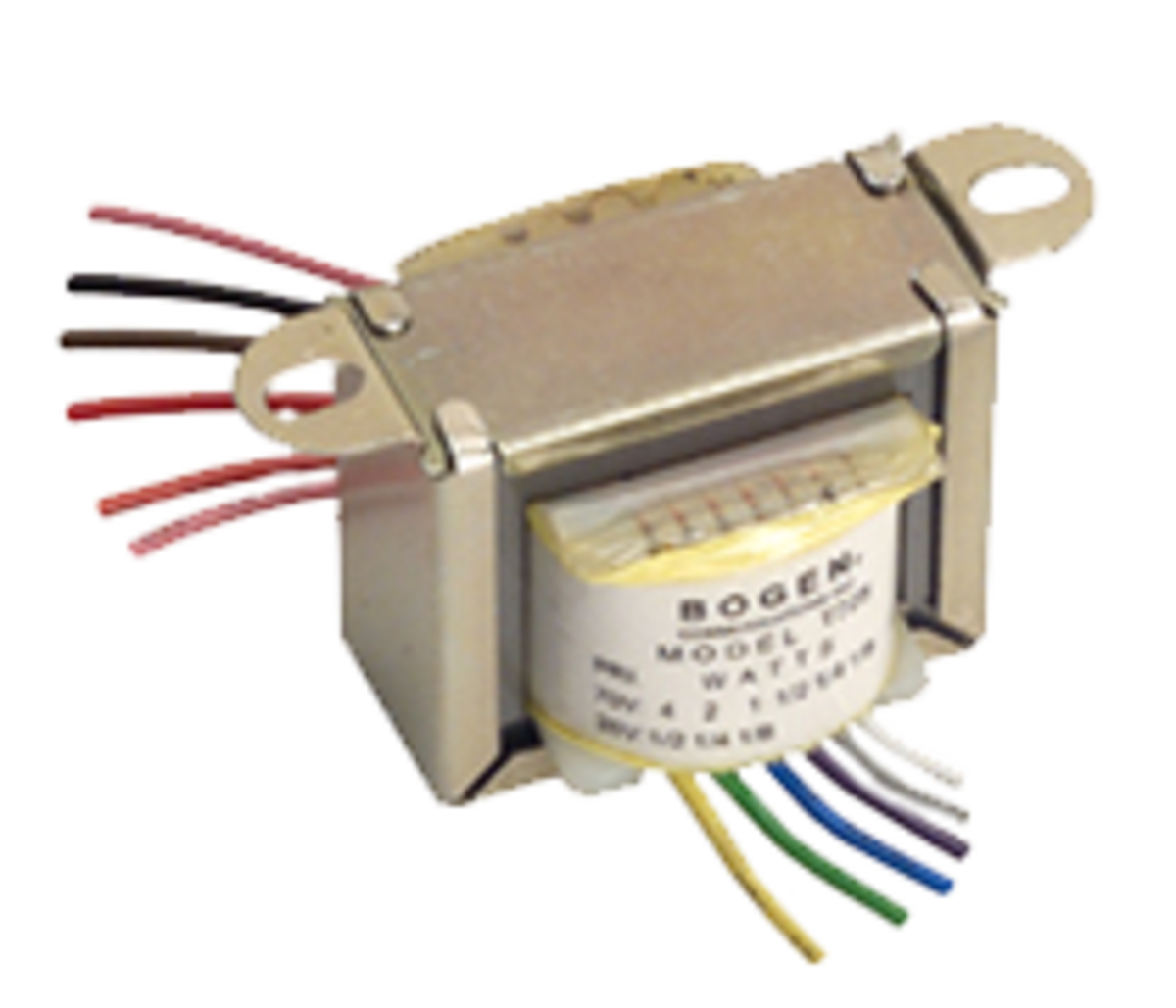

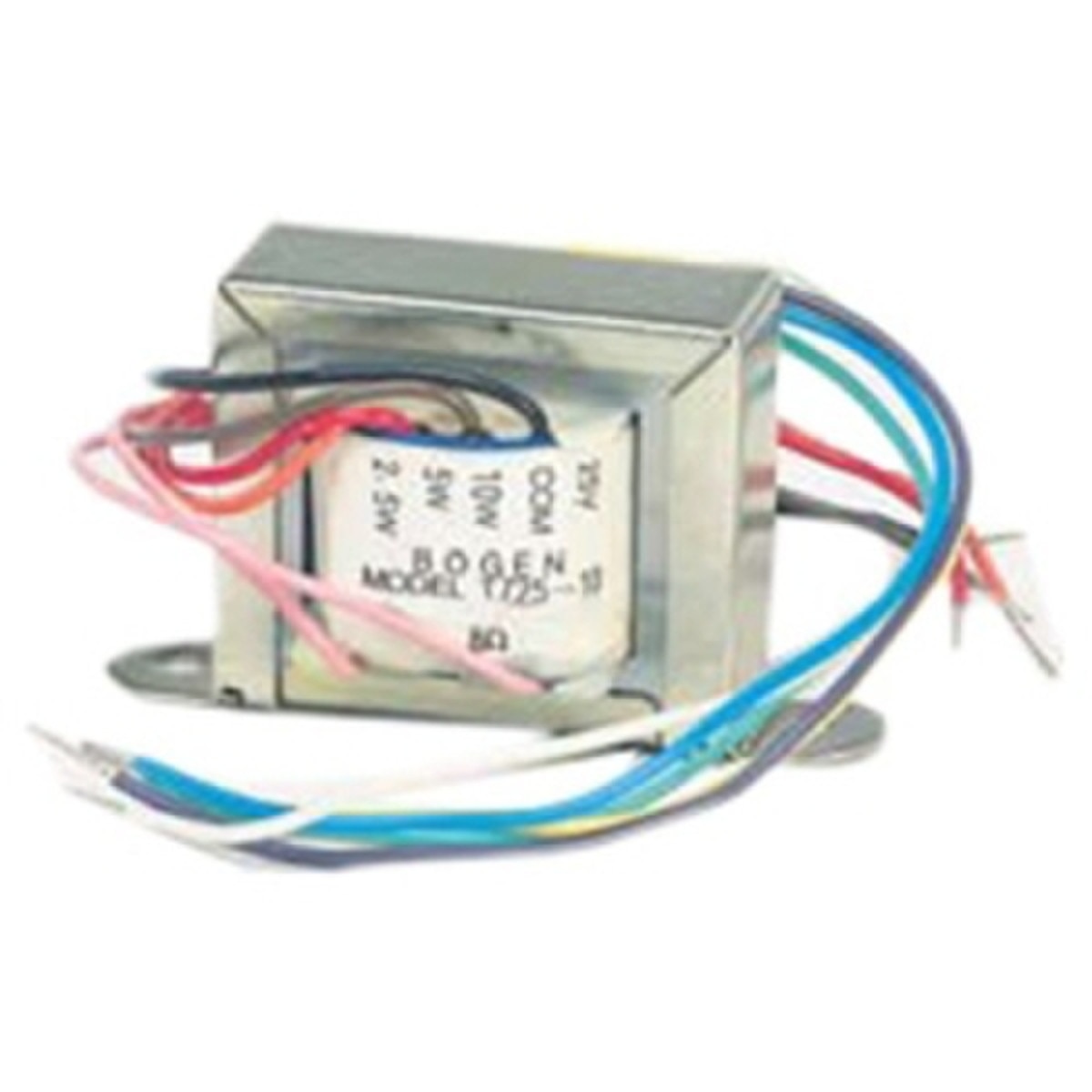

The Bogen Models T725 and T72510 transformers are speaker-matching transformers that allow an 8-ohm speaker to be connected to 70V or 25V amplifier outputs. An 8-ohm secondary connects to the speaker and the multi-tap primary connects to the 70V or 25V amplifier output. The T725 can be tapped at 4, 2, 1, 1/2, 1/4, and 1/8 watts, while the T72510 can be tapped at 10, 5, 2-1/2, 1-1/4, and 5/8 watts. All wires are easily accessible. The unit's dimensions measure 2-1/2" W × 1-1/4" H × 1-3/8" D and it weighs approximately 6 oz.
