V250

Technology partner: V261 Bogen Communications LLC
SKU V250-261

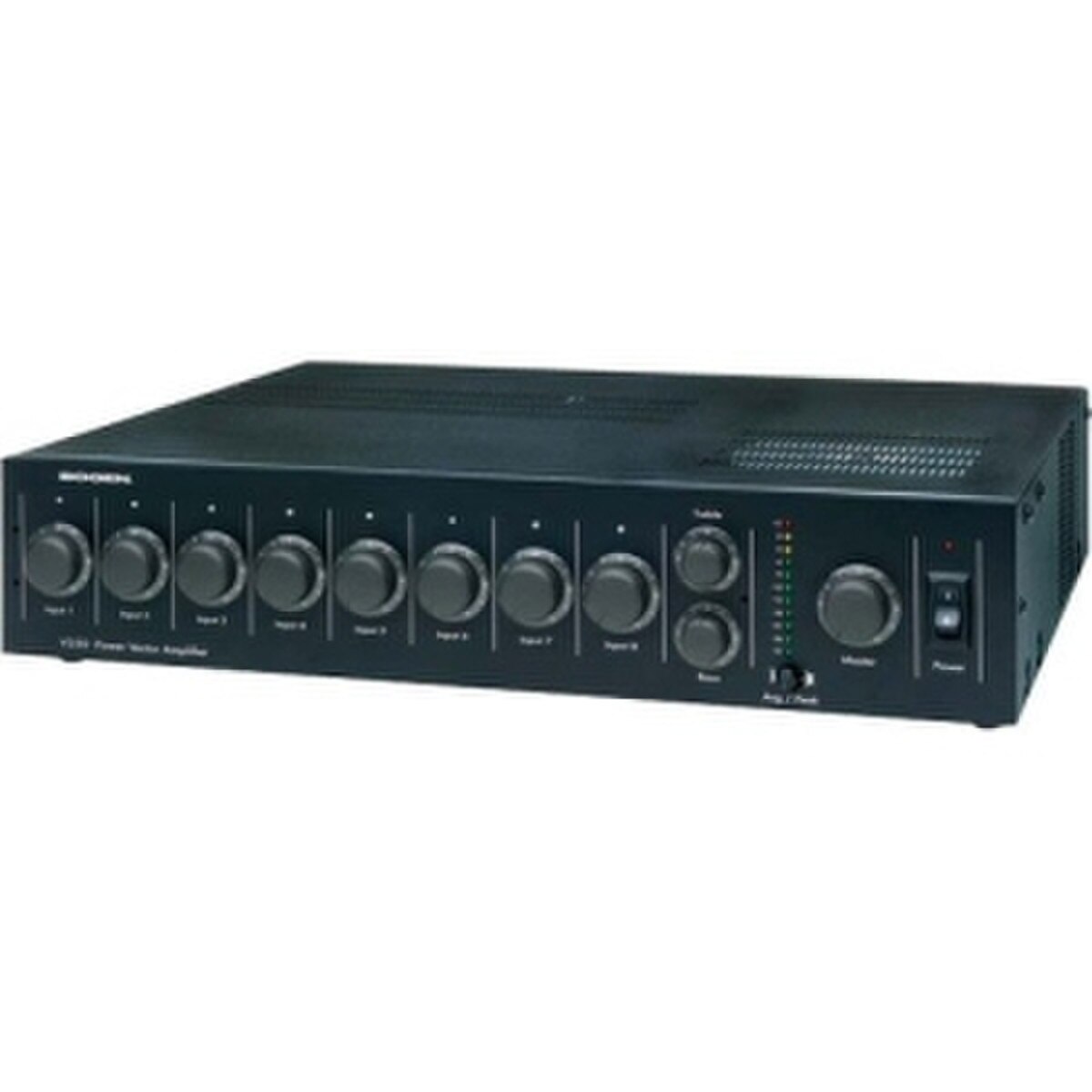

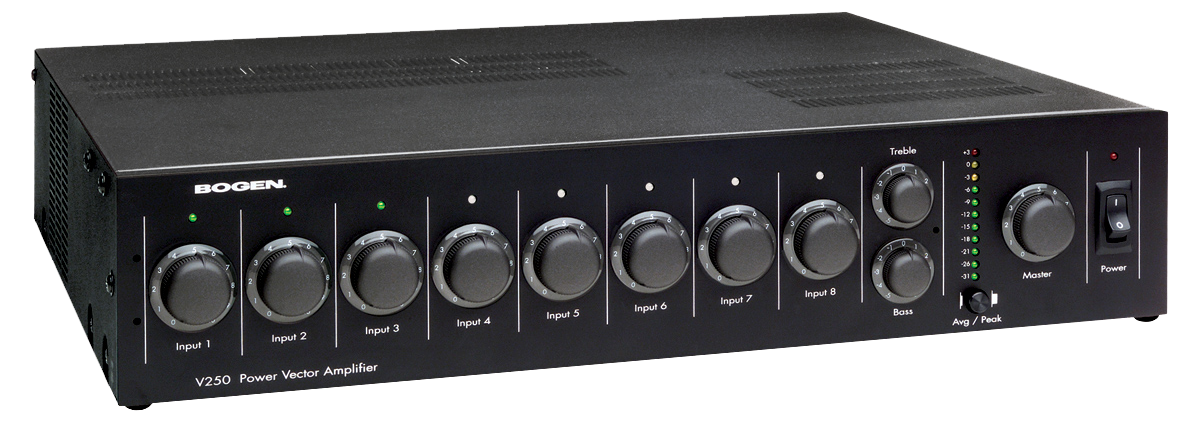

Bogen's Power Vector modular amplifiers offer a wide range of power from which to choose from, with five models ranging from 35W to 250W. The amplifiers are designed to work with both high- (70/25V) and low- (4/8-ohm) impedance speaker systems. Each model includes eight module bays for plug-in input modules and allows up to four levels of priority between modules. Two module bays are capable of accepting signal processing plug-in output modules. Each module is controlled by an independent volume control with an associated signal/clip LED for signal status.An 11-segment LED output meter monitors output signal level. Each model includes a motorized master volume control that can be controlled using a remote volume control panel (RVCP, sold separately). 5 models ranging from 35W to 250W with a large power reserve Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads 8 module bays Wide selection of advanced plug-in modules 2 module bays capable of handling signal processing plug-in output modules 4 levels of priority between modules 11-segment LED output level meter monitors the output level of the power amplifier with Peak and Average meter switch Motorized master volume control that can be remotely operated Bass and treble controls Two-color LED for each channel indicates input active/clipping Lockable switch permits user to select either transformer- coupled outputs or a direct low-impedance output 5-position barrier strip, with clamping washers, provides connections for speaker loads Master mute function overrides all audio from the mixer section of the amplifier Screw terminal for master mute and remote volume control functions Each of the 8 module bays has an associated independent volume control Bass and treble control bypass switch (located in module bay 6) 125 Hz Lo-cut feature (switch located in module bay 6) Signal processing insert jacks allow external equipment to be inserted between the pre-amp output and the power amp input Pre-EQ unbalanced buffer output signal all unit controls, but any external signal processing equipment connected Grounded, unswitched AC convenience receptacle with a 500W maximum capacity provided for external equipment Remote volume control panel (RVCP) (sold separately) Security cover to protect volume, bass, and treble controls (PVSC) (sold separately) Rack mountable (rack mounting kit RPK87 sold separately) 2 rack spaces high (3-1/2'')
*2-4 Days Lead Time for Stock Items / 14-Day Lead Time for Clocks and Penton*

Features:

  • 5 models ranging from 35W to 250W each; a mixeronly version (VMIX) is also available
  • Capable of handling 70V, 25V, 8-ohm, and 4-ohm speaker loads
  • 8 module bays
  • Wide selection of advanced plug-in modules (modules sold separately)
  • 4 levels of priority between modules
  • 2 module bays capable of handling plug-in signal-processing output modules
  • 11-segment LED output level meter monitors the output level of the power amplifier with Peak and Average meter switch
  • Motorized master volume control can be remotely operated
  • Lockable switch permits user to select either transformer-coupled outputs or a direct low-impedance output
  • 5-position barrier strip, with clamping washers, provides connections for speaker loads
  • Bridging In/Out connector
  • External access to priority mute buses
  • Bridging jack and Mute terminals join multiple Power Vector amps and mixers together
  • Independent volume control for each of the eight module bays
  • Two-color LED for each channel indicates input signal or clipping
  • Bass and treble control with bypass switch (located in module bay 6)
  • 125 Hz Low Cut switch (located in module bay 6)
  • Signal-processing insert jacks allow external equipment to be inserted between the pre-amp output and the power amp input
  • Pre-EQ, unbalanced, buffered output signal (post all unit controls, but pre any external Insert equipment connected)
  • Grounded, unswitched AC convenience receptacle with a 500W maximum capacity provided for external equipment
  • 8 module security cover/filler plates included with amplifier (PVMC)
  • Push-button remote volume control panel (Model RVCP, sold separately)
  • Security cover to selectively protect volume, bass, and treble controls (Model PVSC, sold separately)
  • Rack mountable (with rack mounting kit RPK87, sold separately)
  • 2 rack spaces high (3-1/2'')
  • UL and C-UL listed
