WMT1A

Manufacturer: Bogen Communications
SKU WMT1A-261

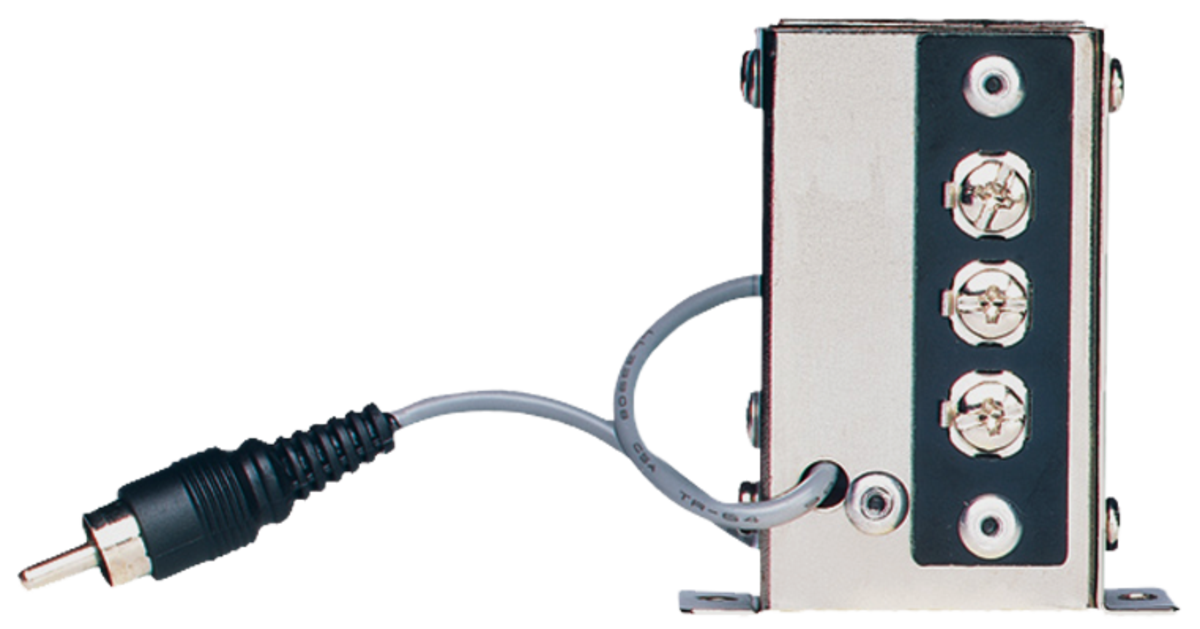

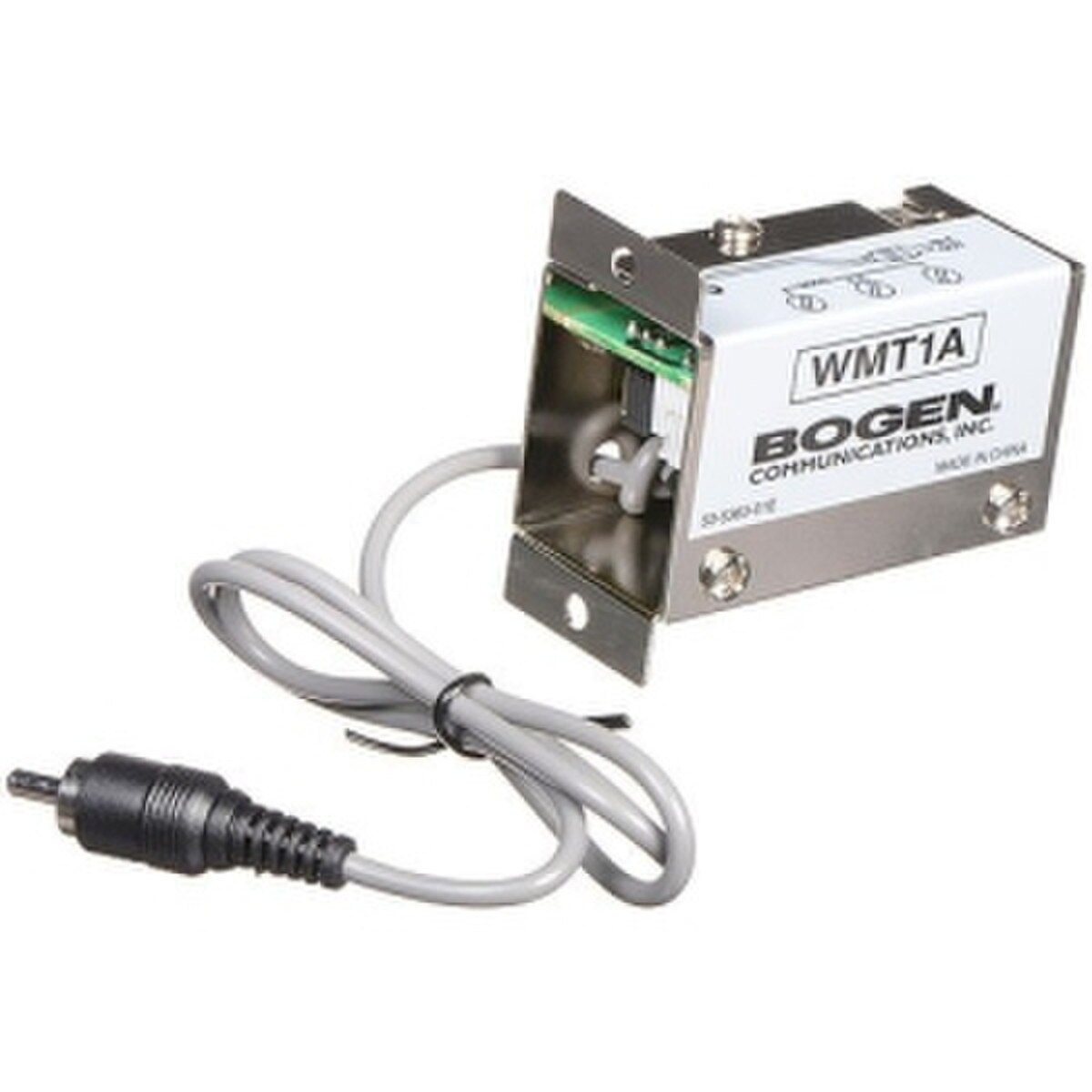

The Bogen WMT1A transformer is designed especially for impedance-matching inputs from, or outputs to, a 600-ohm line. It has a Hi-Z, 10k-ohm primary impedance and a Lo-Z, 600-ohm secondary impedance balanced with a center tap. As an input-matching transformer, it may be used to connect telephone systems to most Bogen public address amplifiers for telephone paging. It also functions as an output-matching transformer in feeding program material over a 600-ohm telephone line (typically for "music-on-hold" applications). It is compatible with any amplifier having a 25V output terminal.


Features:

  • Hi-Z, 10k-ohm primary impedance Lo-Z, 600-ohm secondary impedance, balanced with center tap Matches high-to-low impedance or low-to-high impedance Adapts line level signals to microphone inputs RCA connector for Hi-Z side Screw terminals for Lo-Z side

  • Product Dimensions

    Height: 2.37"
    Width: 2"
    Depth: 1.25"
    Weight: 0.25lb

    Specs & Manuals:

    Spec Sheet/BrochureManual
