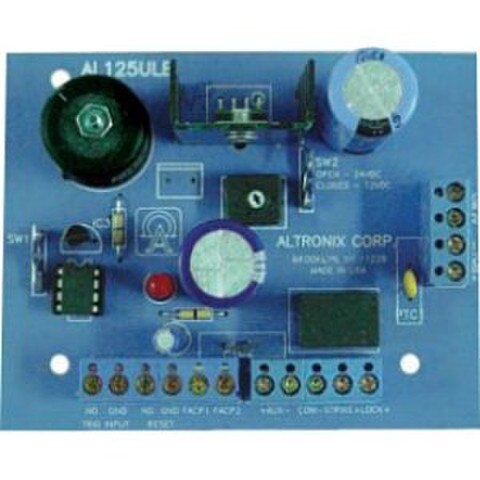

AL125ULB

SKU AL125ULB-474
12/24VDC 1A P/S BOARD W/FACP

Features:

  • 1 amp of total supply current output.
  • 12VDC or 24VDC selectable output.
  • 24VAC/40VA.
  • Automatic switch to stand-by battery when AC fails.
  • Built-in charger for sealed lead acid or gel type battery backup.
  • Filtered and electronically regulated outputs.
  • Maximum charge current .4 amp.
  • Normally Open (NO) trigger input.
  • Short circuit and thermal overload protection.
  • Two (2) Class 2 Rated power limited outputs.
