Item: DTMR1

Vendor Note:

Ground Orders Ship In 3-5 Business Days\n
Lifetime Warranty on All Products


Vendor: Altronix Corporation

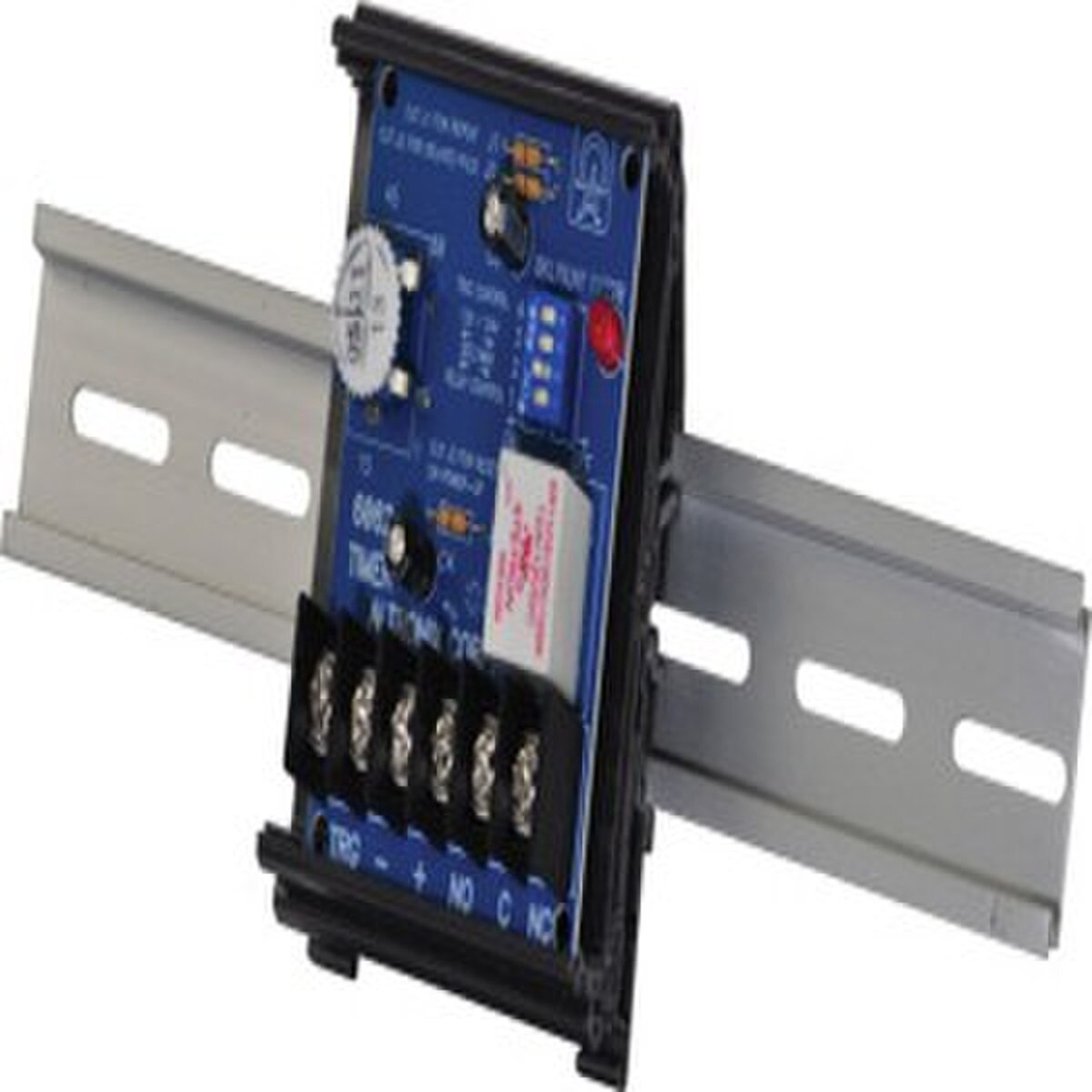

Altronix DTMR1 programmable timer is suitable for many functions that require a timed operation e.g. Access Control Applications, Siren/Bell Cut Off Module, Dialer Delay, Guard Tour Supervisory Timer, etc. Some optional functions include: One Shot, Delayed Release, Delayed Operate, Delayed Pulse and Pulser/Flasher. A new feature has been added which provides a momentary relay activation at the end of a desired timing cycle. This feature eliminates the need for having to use two (2) timers to achieve this function. Another new feature will cancel (interrupt) timing cycle and reset timer if desired.

Notes: n/a

List: $54.13

Dealer: $N/A

  • 12VDC or 24VDC operation is selectable.
  • Form C relay contacts are 8A at 120VAC/28VDC.
  • Current Draw: Stand-by 3mA; Relay Energized 40mA.
  • LED indicates relay is energized.
  • Quick and extremely accurate time range adjustment from 1 sec. to 60 min.
  • Triggers via positive DC (+) voltage, dry contact closure, or removal of contact closure.
  • Selectable relay activation at the start or end of the timing cycle.
  • One (1) second momentary relay activation at the end of the timing cycle (eliminates the need to use two (2) timers for this function).
  • Built-in reset feature which cancels timing cycle.
  • Repeat (pulser/flasher) mode.
  • Snap Track compatible (order Altronix model #ST3)
  • Relative Humidity 85% +/- 5%.
Other Information
Install Hours: .25 *
Phase: Finish
Industry: n/a
Voltage: n/a
Rack Mount: No
Rack Units: 0
Bulk Wire: No
Diameter: 0
* Product install times are provided for reference purposes only. Actual install time may vary. Product install times indicate estimated time to install the product under normal conditions based on industry research and does not take into account other considerations such as travel, un-boxing, programming, commissioning, or other factors.
