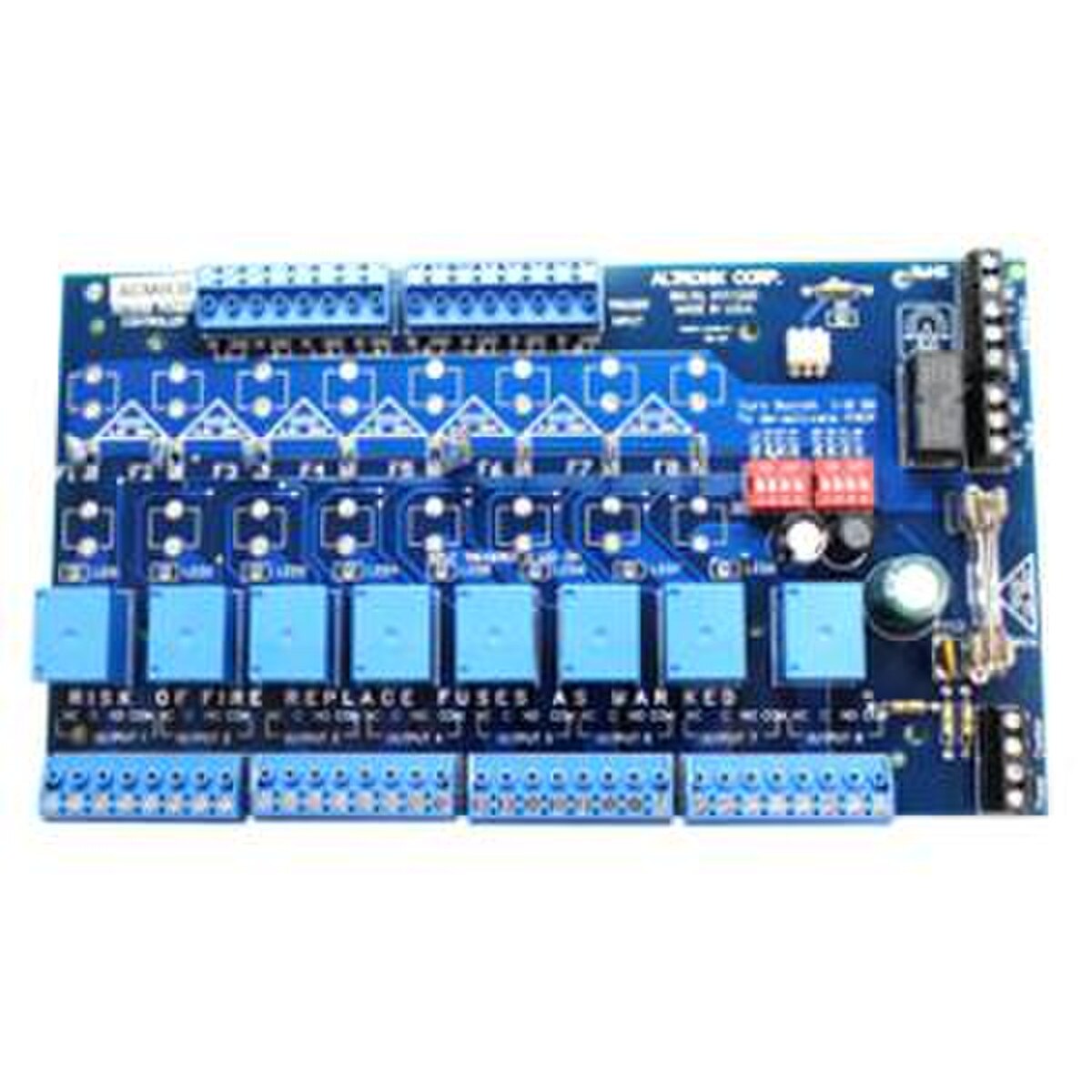

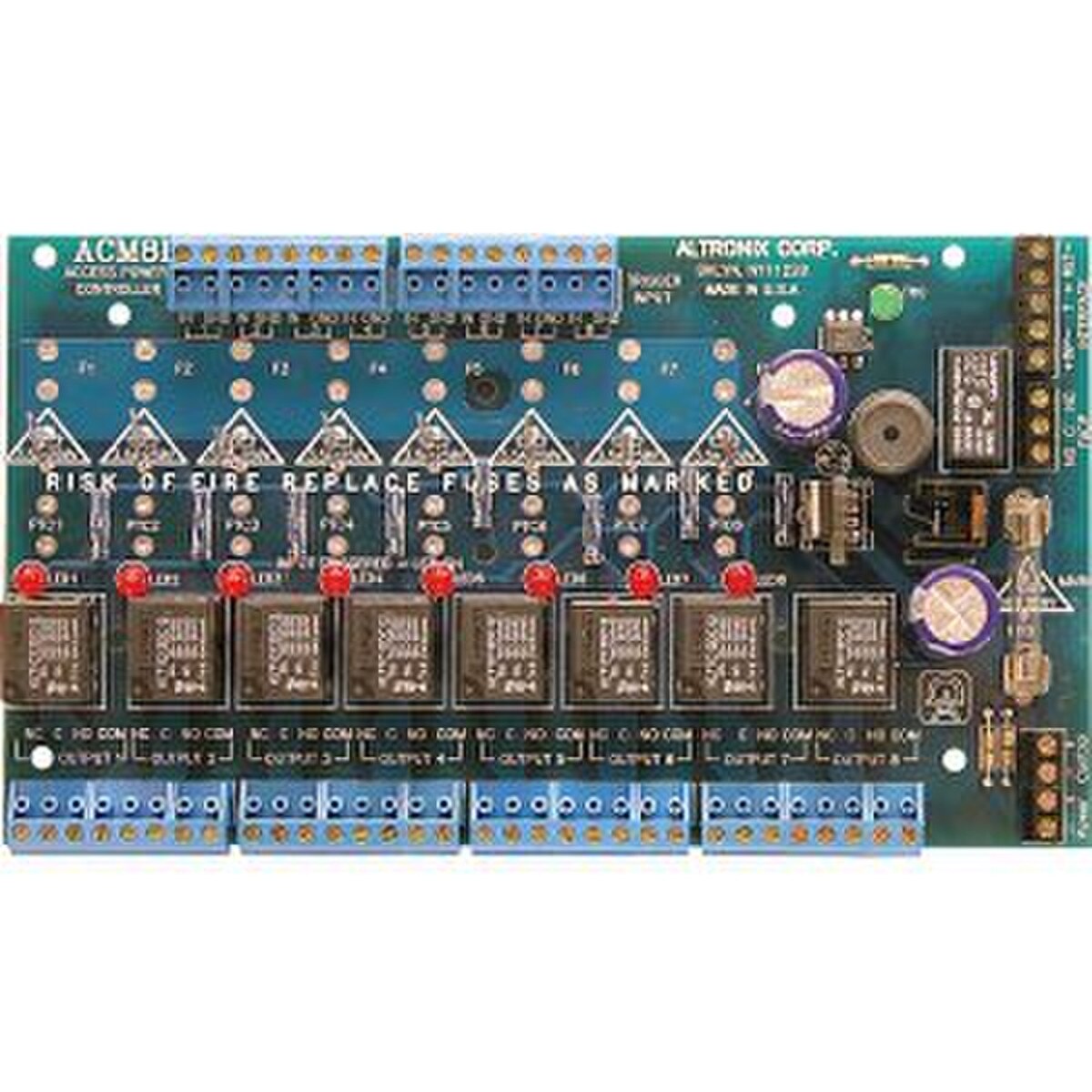

Altronix ACM8CB converts one (1) 12 to 24 volt AC or DC input into eight (8) independently controlled Class 2 rated PTC protected power-limited auto-resettable outputs rated at 2.5A each. Outputs are activated by an open collector sink or normally open (NO) dry trigger input from an Access Control System, Card Reader, Keypad, Push Button, PIR, etc. ACM8CB will route power to a variety of access control hardware devices including Mag Locks, Electric Strikes, Magnetic Door Holders, etc. Outputs will operate in both Fail-Safe and/or Fail-Secure modes. This unit is designed to be powered by one common power source which will provide power for both the board operation and locking devices, or two (2) totally independent power sources, one (1) providing power for board operation and the other for lock / accessory power. The FACP Interface enables Emergency Egress, Alarm Monitoring, or may be used to trigger other auxiliary devices. The fire alarm disconnect feature is individually selectable for any or all of the eight (8) outputs.


  • 12 to 24 volt AC or DC operation (setting not required).
  • Any combination of the above.
  • Class 2 Rated power limited outputs.
  • Eight (8) Access Control System outputs.
  • Eight (8) Access Control System trigger inputs.
  • Eight (8) normally open (NO) inputs.
  • Eight (8) open collector inputs.
  • Eight (8) PTC protected 12VDC auxiliary power outputs (unswitched).
  • Eight (8) PTC protected Fail-Safe and/or Fail-Secure 12VDC power outputs.
  • Fire Alarm Disconnect (latching or non-latching) is individually selectable for any or all of the eight (8) outputs.
  • Fire Alarm Disconnect:
  • Fire Alarm output relay for triggering auxiliary reporting devices
  • Fire Alarm trigger LED indicates that the Fire Alarm Disconnect has been activated.
  • Normally open (NO) or normally closed (NC) dry contact input.
  • One (1) common power input (board and lock power).
  • one (1) for lock/hardware power).
  • Polarity reversal input FACP signaling circuit.
  • Power Supply Input Options:
  • Red LEDs indicate outputs are triggered (relays energized).
  • Two (2) isolated power inputs (one (1) for board power and
