DTK-MRJPOES

Manufacturer: Ditek
SKU DTK-MRJPOES-1569

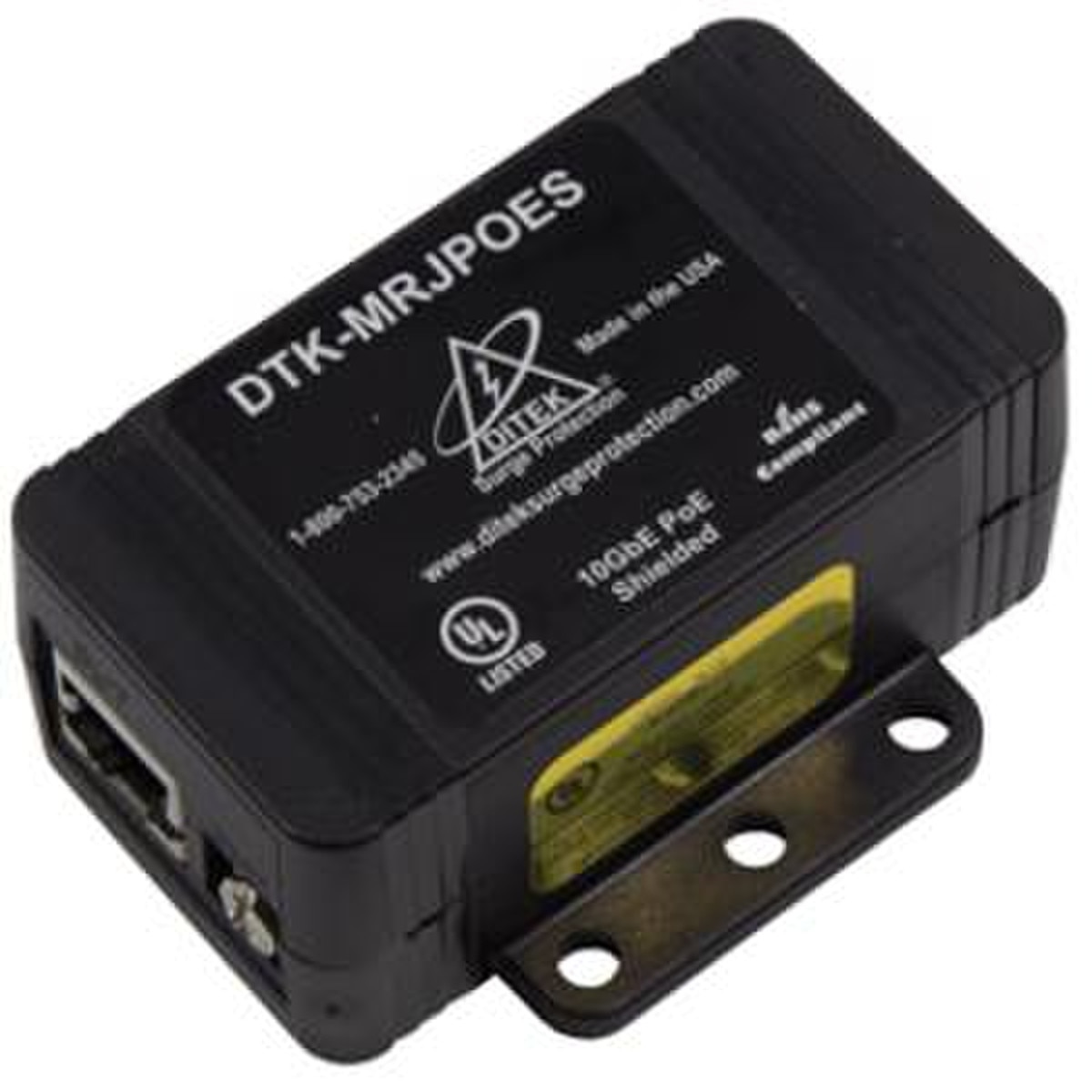

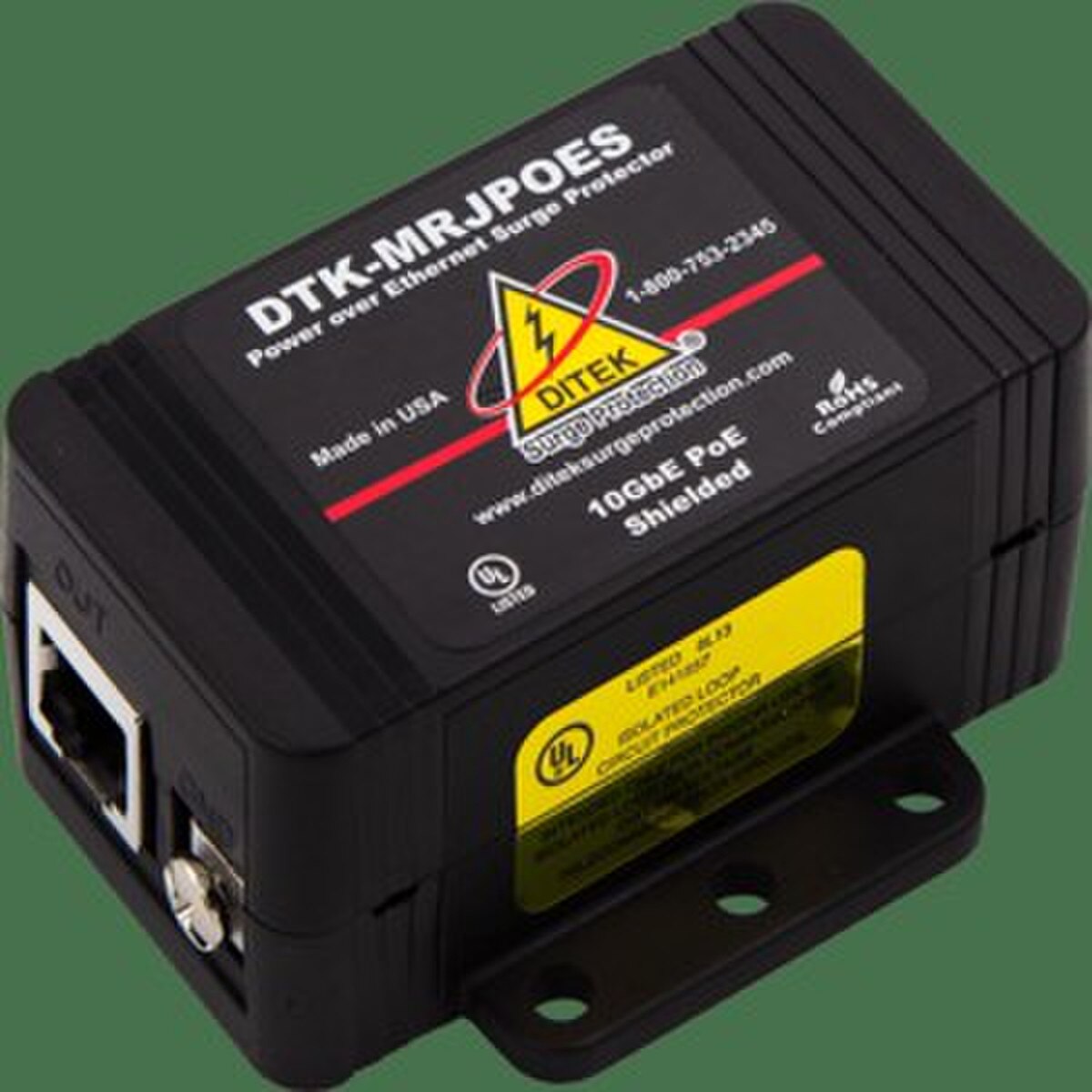

PoE Surge Protector, 10GbE, Single Channel, Shielded RJ45 In / Out, UL 497B - DITEK’s DTK-MRJPOES is designed with state-of-the-art circuitry to provide superior protection for Shielded 10GbE Power over Ethernet connections. This point of use surge protector can be installed at the equipment end, or ahead of injectors and midspan devices. When used with STP cable, the DTK-MRJPOES does not require a separate earth ground. For a complete solution pair with our rack and wall mount Network Series products for head end protection. When used with STP cable, the DTK-MRJPOES does not require a separate earth ground. For a complete solution pair with our rack and wall mount Network Series products for head end protection.


Features:

  • Uses TVS diode and GDT technologies for superior protection
  • Robust 20kA per pair surge current rating
  • Data speeds up to 10GbE without signal degradation
  • Shielded RJ45 female connections
  • Compatible with all IEEE 802.3 PoE standards

Product Dimensions

Height: 1.2"
Width: 1.7"
Depth: 0"
Weight: 4lb

Specs & Manuals:

Spec SheetInstallation Instructions/ Assembly Instruction
